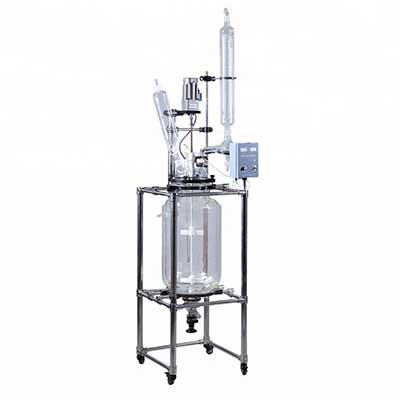

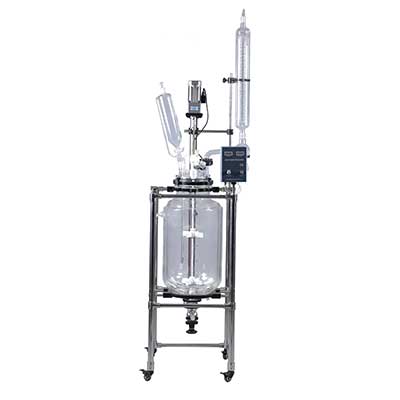

Jacketed Glass Reactor

1. Glass reactor adopts AC frequency control of motor speed, so the rev is steady , no spark appear, wide moment, safe, and can be used as the constant working.

2. Glass reactor system use PTFE composite seal, it can maintain high vacuum degree.

3. Glass reactor system use efficient condenser to ensure high recovery rate.

4. The complete set of double-layer glass use GG17 high borosilicate glass with good chemical and physical properties. The thickness of the glass is 5-7 mm.

5. The glass inter layer interface is added with hot oil, through the loop, it can do reaction under the condition of high temperature; the glass inter layer interface added with cooling fluid can carry on reaction under the condition of low-temperature.

6. The double-layer glass reactor system can be looped with tap water to quickly take away reaction heat.

7. Double-layer glass reactor discharged material has flanged opening and PTFE valve, without dead angle inside the container, it can be demounted to facilitate the discharge of solid materials.

8. Double-layer glass reactor have digital mixing motor, frequency conversion control, matched with a torque increasing of reducer.

9. Double-layer glass reactor system reasonable structure and selected materials. The mechanical components use stainless steel and aluminum-alloy pieces. Electrical components parts: the main components use original imported devices.

10. Double-layer glass reactors cover opening design: constant pressure hopper opening (or as inlet), condensation reflux inlet, thermometer bushing opening, solid feeding opening (or as outlet) and mixing opening.

11. The range of  glass reactor stirring rate is 10-1100 r/min.

12. The gas can be condensed through condenser system.or release valve.

13. Control its pressure inside, by vacuum pump or pressure pump.



  The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
