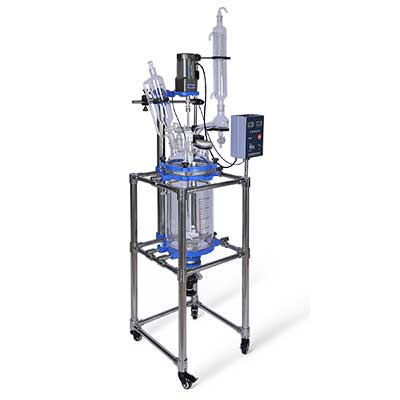

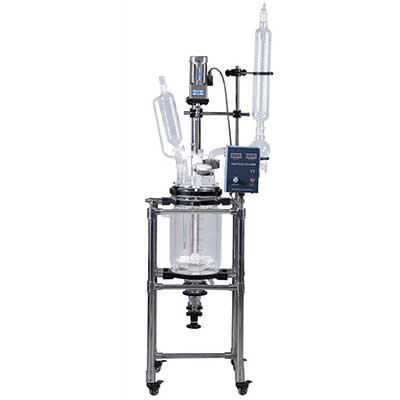

S-10L Jacketed Glass Reactor
The 10L chemical jacketed glass reactor uses GG17 borosilicate glass as the main material, which has good chemical and physical properties, large bottle mouth and manual cleaning. And all PTFE material values, no pleural effusion, no leakage, corrosion resistance.
Features
1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2. Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.
3. Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.
4. Glass discharge valve, non-dead angle mixing, fast emptying, no residue.
5. Frequency control speed gear motor, smooth running，high torque, automatic booster, no spark, noise free, long life.
6. SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.
7. Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine: cooling chiller，providing refrigeration source.
Detail
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | S-10L Jacketed Glass Reactor |
|---|---|
| Stirring Power(W) | 120 |
| Stirring Speed(rpm) | 0~600(max.1300) |
| Stirring Shaft Diameter(mm) | 12 |
| Reaction Flask Capacity(L) | 10 |
| Voltage(V/Hz) | 220 50/60 |
| Motor Torque(g/cm) | 1000 |
| Note | 304 All Stainless Steel Frame |
