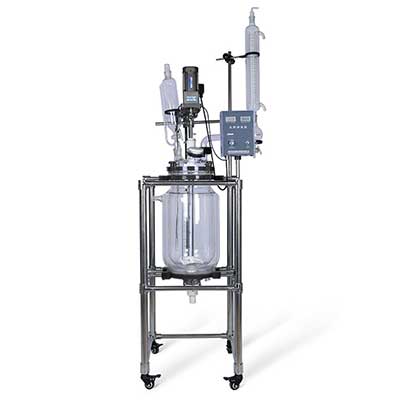

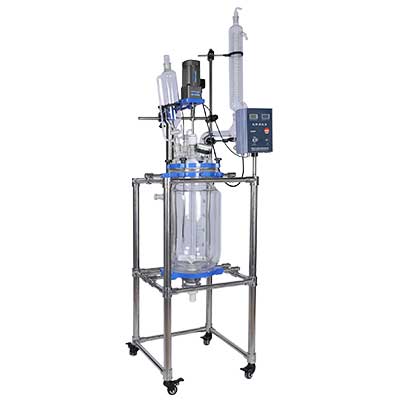

S-20L Jacketed Glass Reeactor
The 20l laboratory glass reactor is designed as double glazing. The inner layer is placed in the reaction medium to stir and mix. The intermediate layer can be heated or cooled by a different source of cold heat (refrigerant, hot water or hot oil). Under constant temperature conditions, in a closed glass reactor, stirring reaction may be carried out under normal pressure or under negative pressure according to the use requirements, and reflux and distillation of the reaction solution may be carried out.
Features
1. Use borosilicate glass (GG17), has excellent physical and chemical properties.
2. Frequency mixing, smooth and reliable, torque, no spark.
3. Seal PTEF components, proprietary technology, keeps the market similar products the best vacuum (about -0.098mpa), leading, and equipped with debris collecting trough.
4. Feet with brake casters, easy to move
5. Distillation and backflow can be simultaneous
6. matching products.
Detail
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | S-20L Jacketed Glass Reactor |
|---|---|
| Stirring Power(W) | 120 |
| Stirring Speed(rpm) | 0~600(max.1300) |
| Stirring Shaft Diameter(mm) | 12 |
| Reaction Flask Capacity(L) | 20 |
| Voltage(V/Hz) | 220 50/60 |
| Motor Torque(g/cm) | 1200 |
| Note | 304 All Stainless Steel Frame |
