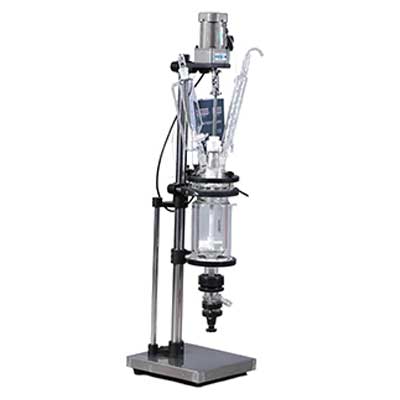

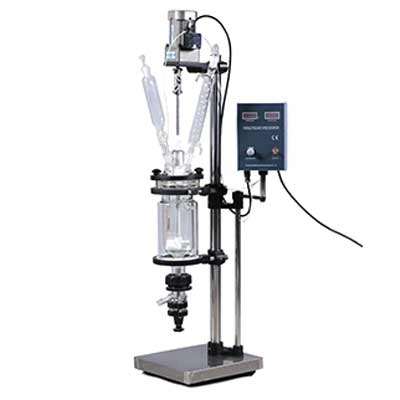

S-5L Jacketed Glass Reactor
The 5L batch glass reactor is a glass reactor vessel that is widely used in the process industry. It is used in a variety of process operations such as solids dissolution, product mixing, chemical reactions, batch distillation, crystallization, extraction, and polymerization.
Features
1. All the PTFE material value, no put pleural effusion, no leakage, corrosion resistance.

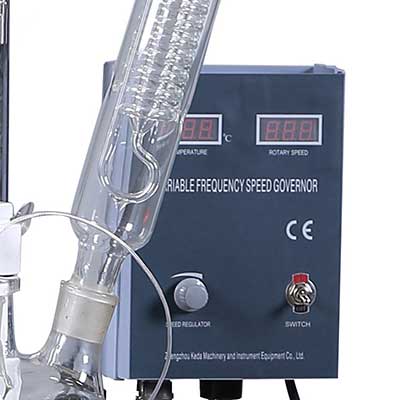

2. Frequency control, AC induction motor, digital display and constant rotary speed, no brush, no spark, safe, stable and continuous working.

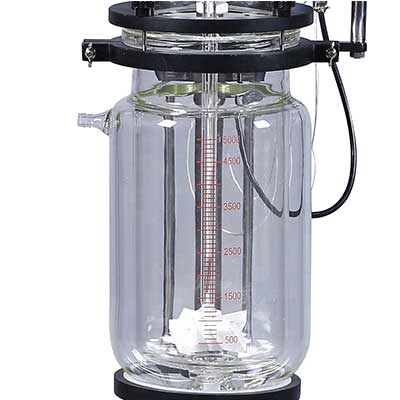

3. GG17 high borosilicate glass owns good chemical and physical properties, big bottle mouth, hand-in cleaning.
4. Mechanical Sealing with proprietary technology, maintaining the best vacuum degree (0.098 Mpa) among the similar products in the market.
5. Overall stainless steel frame structure, compact and solid, stable and reliable without shaking when stirring.
6. With brake casters, convenient and reliable for moving.
7. Glass discharge valve without dead corner, solid/liquid material can be easily released from the bottom.
8. It can be used as a distillation syntheses device.
9. LCD display, easier and more convenient to measure temperature.
Detail

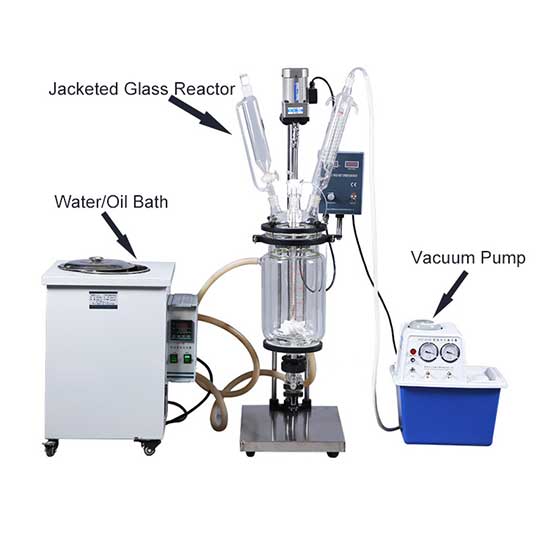

The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | S-5L Jacketed Glass Reactor |
|---|---|
| Stirring Power(W) | 60 |
| Stirring Speed(rpm) | 0~600(max.1300) |
| Stirring Shaft Diameter(mm) | 12 |
| Reaction Flask Capacity(L) | 5 |
| Voltage(V/Hz) | 220 50/60 |
| Motor Torque(g/cm) | 4800 |
| Note | Floor Type |
