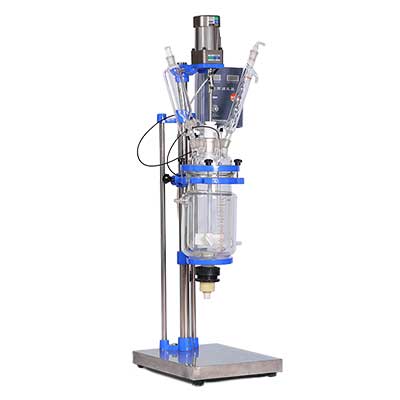

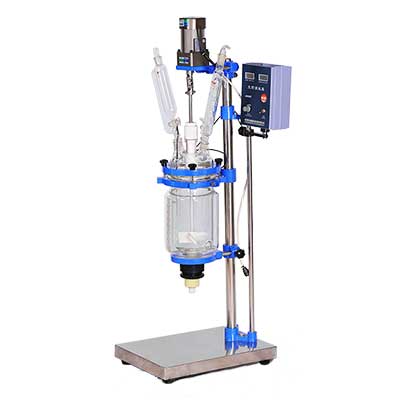

S-3L Jacketed Glass Reactor

S-3L Jacketed Glass Reactor
S-3L Jacketed Glass Reactor
S-3L Jacketed Glass Reactor


Double-layer glass reactor can do the stirring reactions in the inner layer under the condition of vacuum. The interlayer can make constant temperature for heating or cooling reaction through the heat or cold source(freezing liquid, water or hot oil).

  Features


1. GG17 high borosilicate glass, with good chemical and physical properties.
2. The evaporation and back-flow of reaction material can be controlled.
3. The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.
4. The design of large bottle mouth, easier to clean.
5. It can be used as a distillation syntheses device.
6. The sealing performance is 0.098 Mpa.
7. LCD display, easier and more convenient to measure temperature.

  Detail

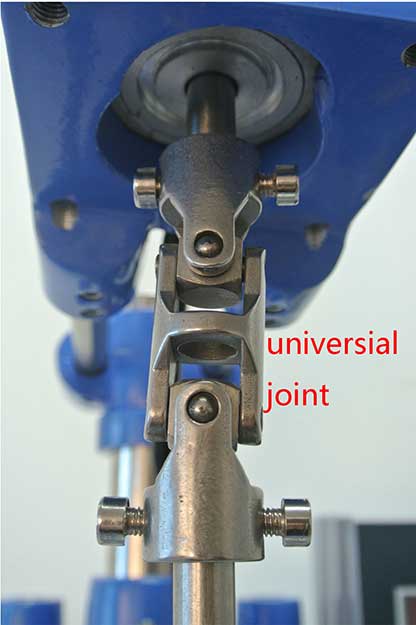

universal joint

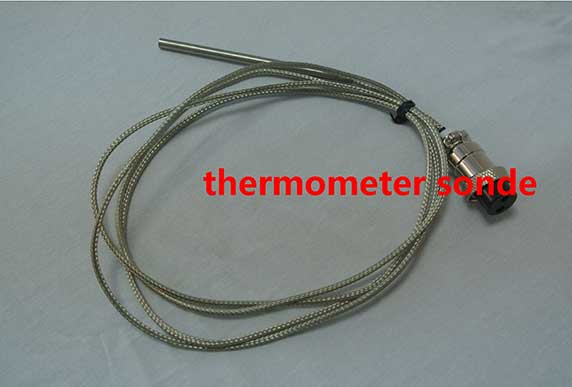

thermometer sonde

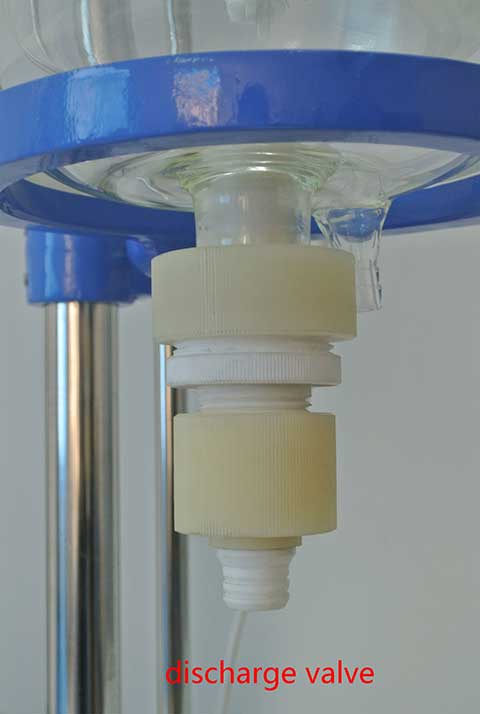

discharge valve


  The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.


- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump

  After sale


- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan

  Package


package

  Transport


transport


Model S-3L Jacketed Glass Reactor
Stirring Power(W)  60
Stirring Speed(rpm) 0~600(max.1300)
Stirring Shaft Diameter(mm) 12
Reaction Flask Capacity(L)  3
Voltage(V/Hz) 220 50/60
Motor Torque(g/cm) 2400
Note Floor Type
