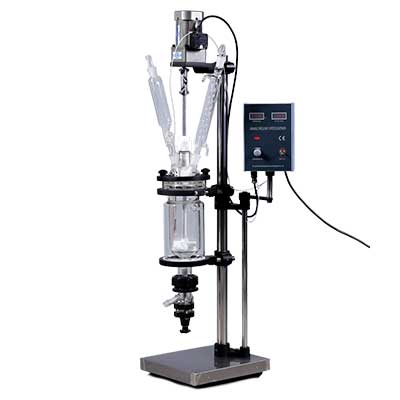

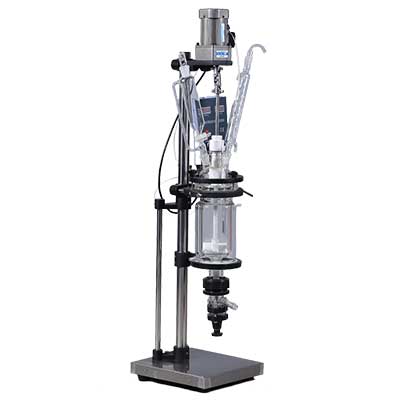

S-1L Jacketed Glass Reactor
The intermediate layer of the small jacketed glass reactor can be heated or cooled by a cold or hot source (refrigerant, water or hot oil) and is ideal for modern synthetic chemicals, biopharmaceutical, and new material testing/ pilot/production equipment.
Features
1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2.Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.

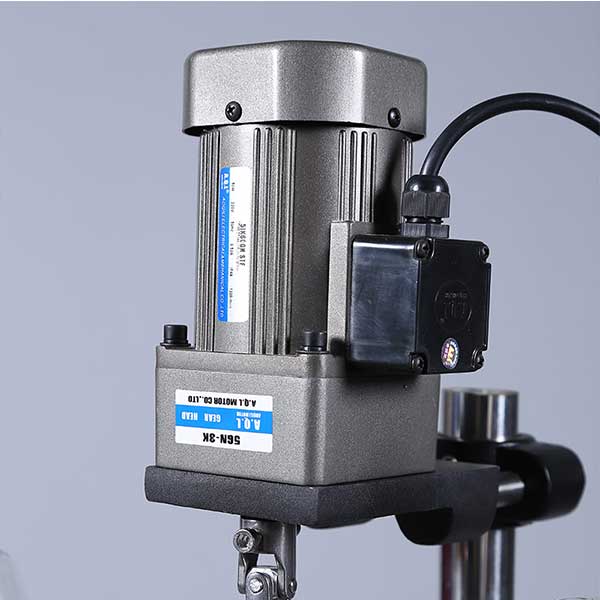

3.Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.

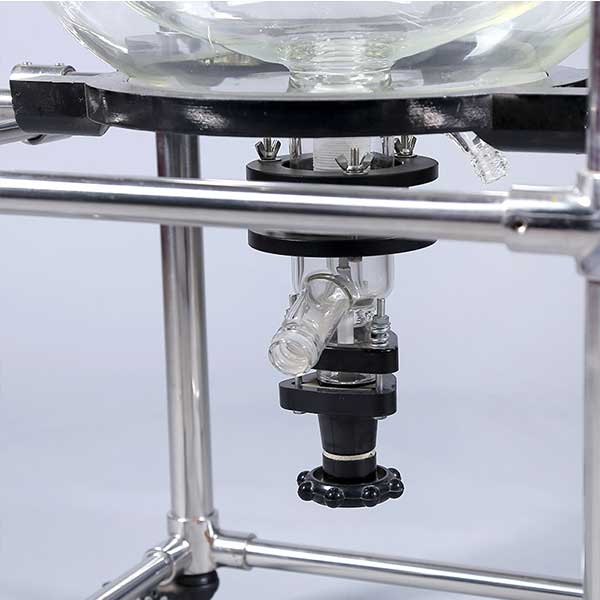

4.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
5.SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.
6.Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine:cooling chiller，high and low temperature machine，convenient and practical.
Detail
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | S-1L Jacketed Glass Reactor |
|---|---|
| Stirring Power(W) | 60 |
| Stirring Speed(rpm) | 0~600(max.1300) |
| Stirring Shaft Diameter(mm) | 12 |
| Reaction Flask Capacity(L) | 1 |
| Voltage(V/Hz) | 220 50/60 |
| Motor Torque(g/cm) | 2000 |
| Note | Floor Type |
