F-50L Single layer glass reactor
The 50L single-layer glass reactor is a kind of experimental equipment integrating vacuum, distillation, reflux, stirring, constant temperature water bath or oil bath. This multifunctional vacuum constant temperature single-layer glass reactor can carry out various biochemical reactions under constant temperature conditions. And synthetic reactions. The single-layer glass reactor is entirely a fully enclosed system. A circulating water vacuum pump can be used to generate a vacuum to draw in various liquids and gases. It can also be refluxed or distilled under different temperature conditions.
Features
1. frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG17 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer-controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. The integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series are available.
Detail

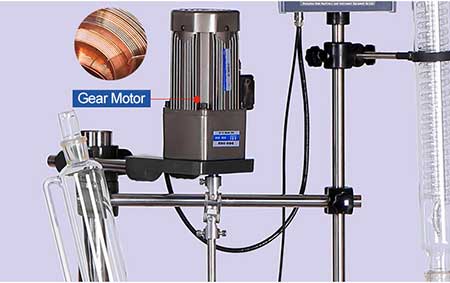

Gear Motor
1.Intemational copper wire.
2.High efficency,long operation time,good stability and noise free.
3.Standard gears,no gap and abrasion resistance.
4.CE Approved.

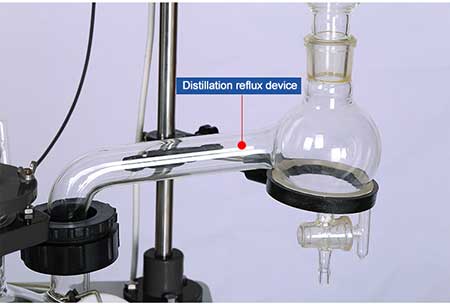

Distillation Reflux Device
With a manual discharge collecting value,tum off can continue to do the reflux reaction.Can be selected with different capacity of the hanging collection botlle.

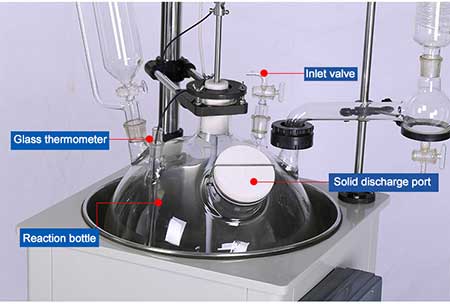

Reaction bottle
Borosilicate glass,experimental,special glass for chemical industry,high transparency,easy to observe,sphenrical design,stirning more fully.
Solid Discharge Port
Multi-function mouth design for easy cleaning and feeding.PTFE TOP cover,anti - corrosion,non - pollution,high - sealing.

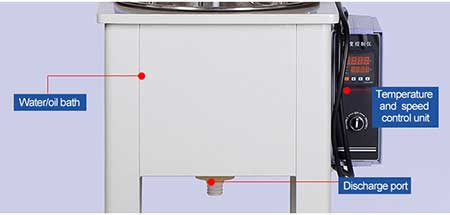

Water/Oil bath
SUS304 stainless steel,water bath;room temprature-99℃,oil bath;room temprature +5~180℃,thickened,corrosion - resistant.The pot can be equipped with a full copper cooling coil,which can be used for low temprature reaction or rapid cooling of the material.
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | F-50L Single Layer Glass Reactor |
|---|---|
| Voltage(V/Hz) | 220 50/60 |
| Stirring Power(W) | 120 |
| Stirring Speed(rpm) | 60-600 |
| Capacity(L) | 50 |
| Heating Power(kW) | 6 |
| Heating Mantle Power(kW) | 5 |
| Temperature Using Range(℃) | RT-250|RT-350 |
| Motor Torque(g/cm) | 1500 |
