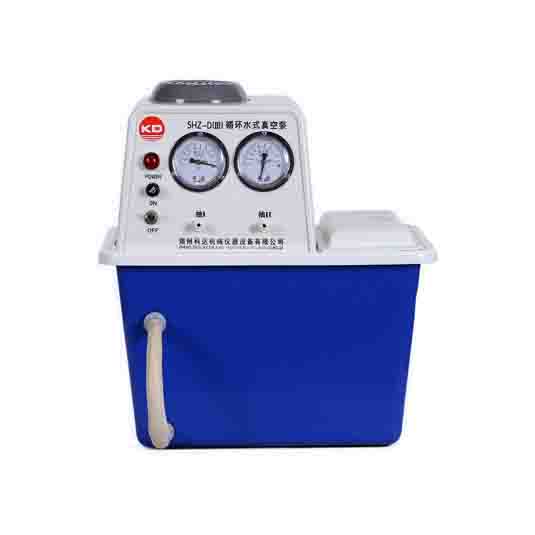

Desktop Circulating Water Vacuum Pump
Circulating water multipurpose vacuum pump is the device with circulating water as working fluid, and it adopts jet technology to create negative pressure. According to the appearance is divided into desktop type and vertical type ( vertical type has larger capacity relatively). Desktop type also is divided into anti-corrosion type and stainless steel type, according to motor material. Transparent tank vacuum pump is available.
The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Application
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production .
All Copper Core Coil Motor
180W High-power Motor
High temperature resistance, Long working life
Independent two meters double taps
Provide vacuum source for two containers
Stainless steel axis of the motor
Anti-corrosion, abrasion resistance and long operating life
Sink
A molding engineering plastic main part,not easy to deform, durable use with long service time
Note
1. Double taps, two vacuum meters, alone or in parallel.Newly improved anti-corrosion four taps, with four vacuum meters, alone or in parallel.
2. Motor material: stainless steel or anti-corrosion material.Corrosion resistance pump, free-pollution, low noise and move easily. Vacuum regulator is available according to customer’s needs.
3. ccommodate four people for chemical test, reduces the cost, and also saves the space.To prevent it to work long hours after high temperature, vacuum degree is reduced, specially add ice hole to add ice when water temperature too high vacuum degree reduced.
4. Reasonable design, compact structure, security encapsulation.Absorb the harmful gas, environmental friendly, to ensure physical and mental health.
5. Resistance to acid and alkali solvent. Special customized motor by well-known manufacturers, fluorine rubber mechanical seal to keep no corrosive gas into the motor. Water circulation to save precious water resources.

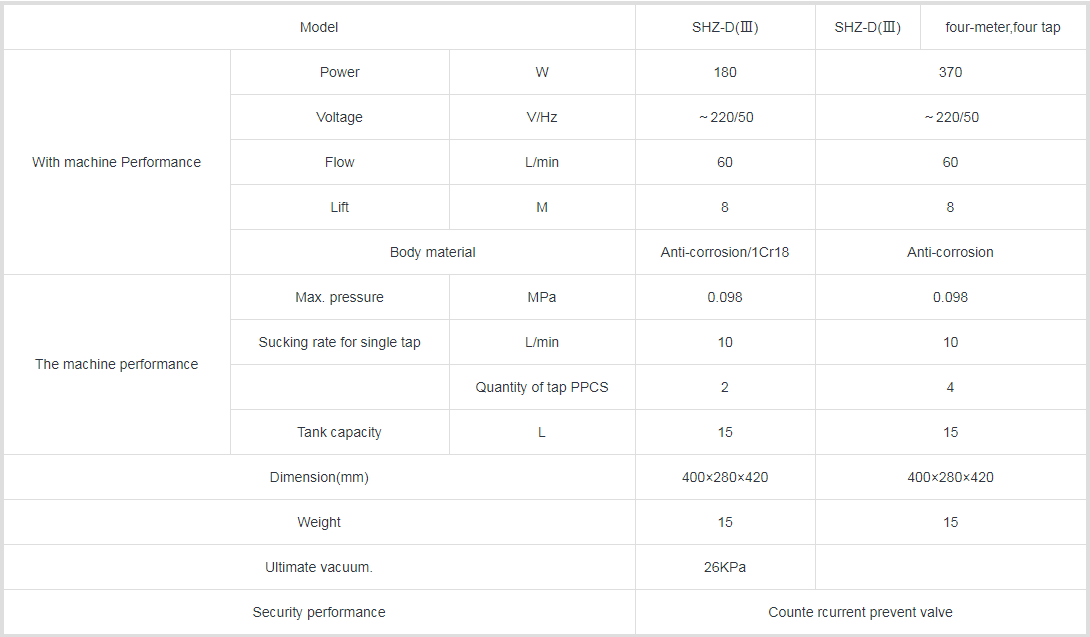

Technical Index
Technical Index
