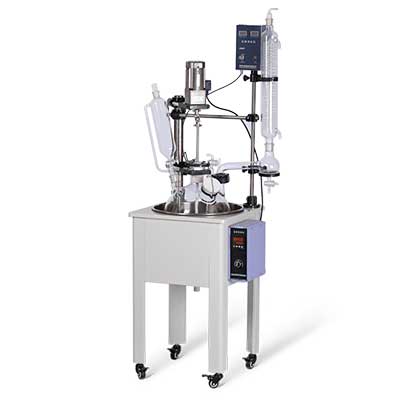

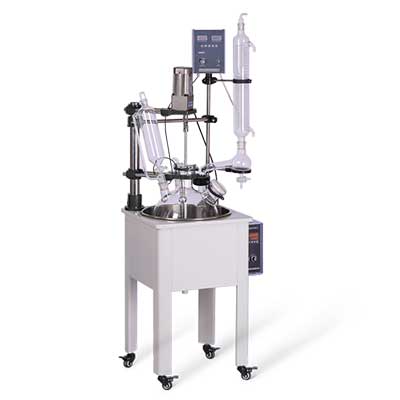

F-20L Single layer glass reactor
The 20l single-layer glass reactor can perform a closed system of various biochemical reactions and synthetic reactions under constant temperature conditions. The single layer glass reactor itself has a water/oil heating bath or heating jacket. It can meet the characteristics of constant temperature, fast heating and precise temperature.
Features
1.Glass instrument adopts GG-17 material, good physical and chemical properties,
2.Frequency conversion and control of motor speed mixing, running steady, torque, no spark
3.Stainless steel structure, and beautiful shell and Corrosion resietence
4.Constant temperature numerical control heating oil bath
5.Control temperature acurately, digital display
6.Good seal with PTFE components.
Detail
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | F-20L Single Layer Glass Reactor |
|---|---|
| Voltage(V/Hz) | 220 50/60 |
| Stirring Power(W) | 120 |
| Stirring Speed(rpm) | 60-600 |
| Capacity(L) | 20 |
| Heating Power(kW) | 4.5 |
| Heating Mantle Power(kW) | 3 |
| Temperature Using Range(℃) | RT-250|RT-350 |
| Motor Torque(g/cm) | 1200 |
