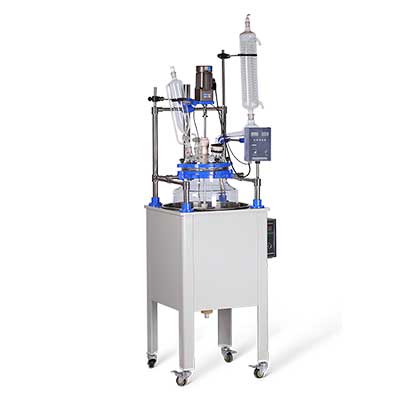

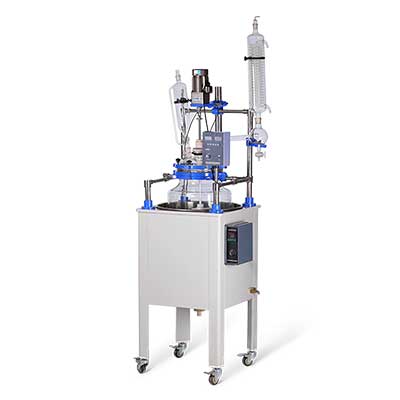

F-100L Single layer glass reactor

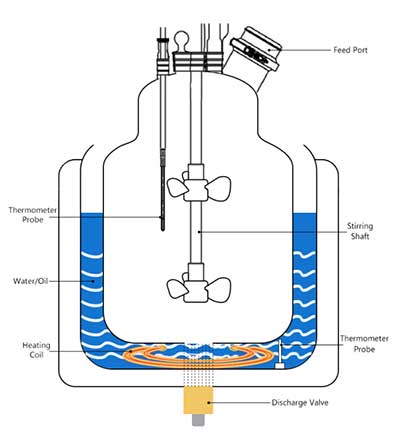

Working principle of F-100L single-layer glass reactor: enter the constant temperature (high temperature or low temperature) hot solution or coolant through oil bath (tank), heat or cool the materials in the reactor, and provide stirring equipment to handle vacuum stirring reaction. Condensation reaction distillation, extraction and separation and reaction heating experiments.
Features
1.GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree
2. Precision Mechanical seal stirring to keep a high vacuum degree.
3. Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.
4. Frequency control speed gear motor, smooth running, high torque, automatic booster, no spark, noise-free, long life.
5. SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure
Detail

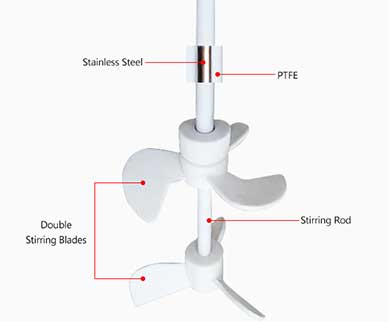

Stirring Shaft
Stirring shaft is made of stainless steel and coated by PTFE.
Stainless steel supports high strength and PTFE avoids material being contaminated,double stirring blades,more even and more stable.
Constant Pressure Funnel - GG17
Temp Range - 100℃~400℃.
High acid and alkali resistant,high temperature resistant,high strengh and hardness.
Feed rapidly,no residual and easy clean.
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | F-100L Single Layer Glass Reactor |
|---|---|
| Voltage(V/Hz) | 380 50/60 |
| Stirring Power(W) | 180 |
| Stirring Speed(rpm) | 60-600 |
| Capacity(L) | 100 |
| Heating Power(kW) | 9 |
| Heating Mantle Power(kW) | ....... |
| Temperature Using Range(℃) | RT-250|RT-350 |
| Motor Torque(g/cm) | 3000 |
