Circulating water multipurpose vacuum pump is the latest designed vacuum pump model with circulating water as working fluid, and it adopts jet technology to create negative pressure. It is not only a kind of vacuum suction device, but also supplies cooling water to the reaction device at the same time. It has the non-oil, free-pollution, anti-corrosion, low noise, easy to move and so on features.

SHZ-95B is a once forming anti-corrosive shell with five taps new pump, which is improved on the basis of all stainless steel five taps in SHZ- C type vacuum pump. The taps can also wok alone, or paralleled to get more vacuum. It can meet the needs of larger rotary evaporators and glass reactors, which also serve many devices at the same time.

Note

1.One machine with multi-pipe operation, where three sets (five sets )of air exhauster are fixed and can be used independently or parallelly, compared with desktop pump, swept volume is bigger, applied to large swept volume vacuum needs.

2.Corrosion resistance, free-pollution, stable performance, low noise and durable.

3.The tank is made from Polyvinyl chloride plastics, free-pollution; The shell adopts stainless steel material or static spring plastic.

4.Host stainless steel movement and anti-corrosive movement models.

5.The water-line target, light shows high, medium and low.

6.4 trundles make the movement easily

7.The air exhaustor, three links, check valve, suction nozzle are made of PTFE, anti-acid and alkali.

8.Pump body and impeller are made of corrosion protection polypropylene.

9.Special customized motor by well-known manufacturers, fluorine rubber mechanical seal to keep no corrosive gas into the motor.

10.There are several sets pumping system inside the pump. Three or five sets taps are installed in this model, alone or in parallel. Compared with desktop pump, it has larger amount of exhaust, in particular suitable for big device’s demands.

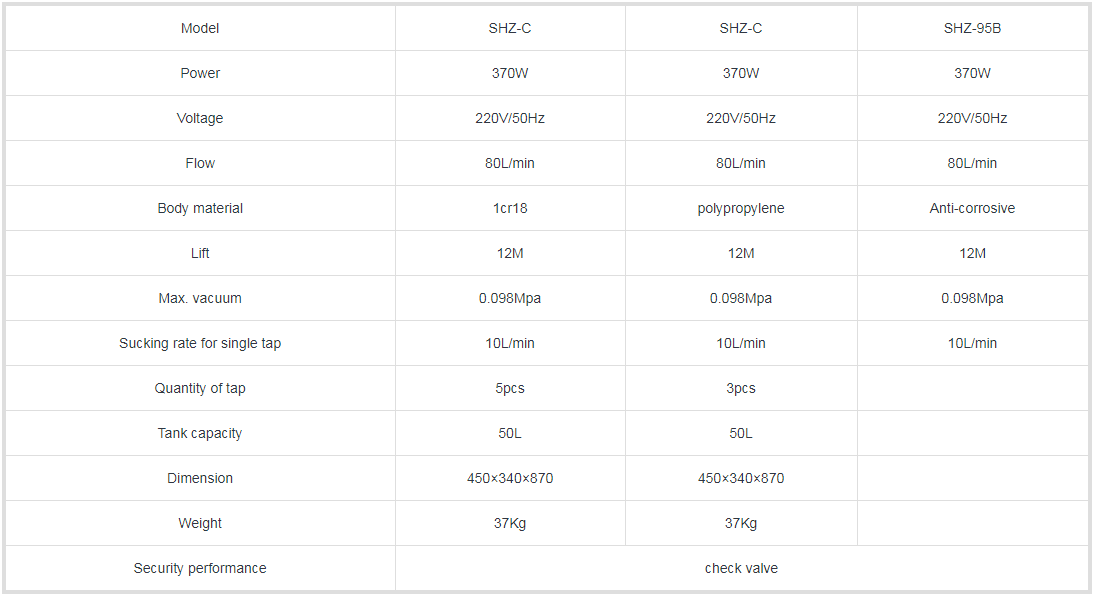

Technical Index
