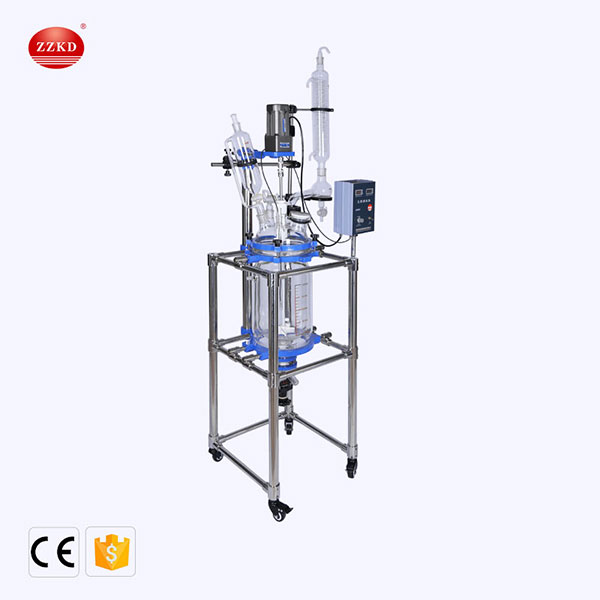

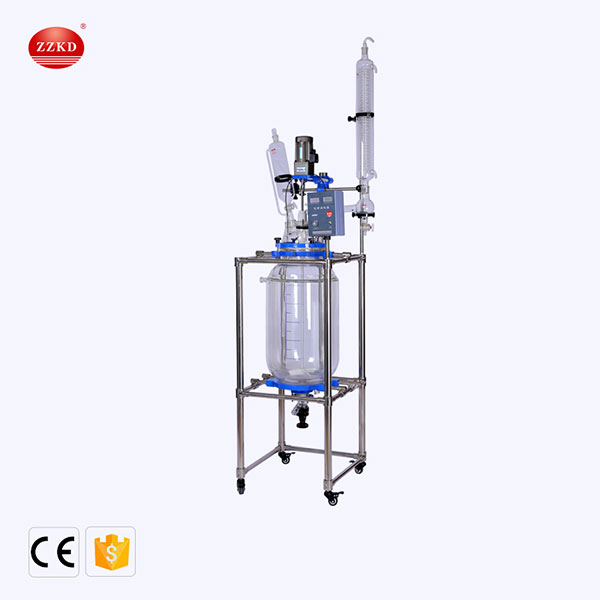

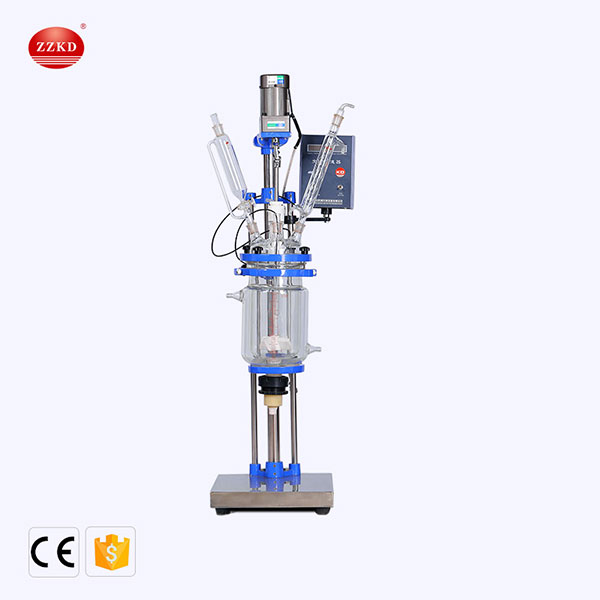

Our glass reactors are include single layer glass reactor and double layer glass reactor, The application of double layer glass reactor is more extensive, divided according to capacity, including:2L jacketed glass reactor, 5L jacketed glass reactor, 10L jacketed glass reactor, 20L jacketed glass reactor, 50L jacketed glass reactor, 100L jacketed glass reactor.

The operation process of the jacketed glass reactor:

Through the interlayer of the glass reactor, inject a constant temperature (high temperature or low temperature) hot solution or cooling liquid to heat or cool the materials in the reactor at a constant temperature, while stirring,The materials are reacted in a single and double-layer glass reactor, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the materials can be discharged from the discharge port at the bottom of the tank, which is convenient for operation.
The single layer glass reactor and double layer glass reactor is an ideal test and production equipment for the preparation of modern synthetic chemicals, biopharmaceuticals and new materials, and is widely used.
Skills for the operation of single layer glass reactor and double layer glass reactor:

1.In the reaction of different media in a glass reactor, you should first check whether the media corrodes the main material, reacts violently to the instant, produces a large amount of gas or high-temperature flammable and explosive chemical reactions, and high pressure, high temperature or the medium contains chlorine Ions, fluoride ions, etc., which cause serious corrosion reactions to stainless steel, must be specially ordered.Except that the body and jacket of the glass reactor are made of transparent glass, the others are made of stainless steel or other metal materials.

2. When loading the reaction medium, it should not exceed 2/3 of the liquid level of the kettle body.

3.During or at the end of work, it is strictly forbidden to disassemble under pressure, and it is strictly forbidden to work the glass reactor under overpressure and overtemperature.
