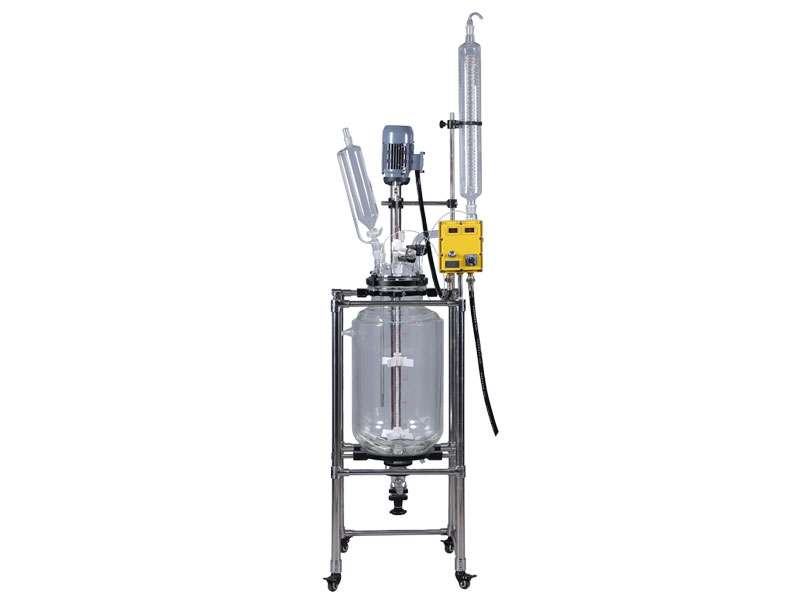

Laboratory double-layer glass reactor introduction
The jacketed glass reactor is designed as double-layer glass, and the inner layer is placed in a reaction solvent to perform a stirring reaction, and the interlayer can be heated or cooled by a different cold and heat source (refrigerant, hot water or oil). Under the constant temperature condition, the sealed glass reactor can be stirred under normal pressure or negative pressure according to the requirements of use, and can carry out reflux and distillation of the reaction solution. It is a modern fine chemical, biopharmaceutical and new material. The ideal pilot and production equipment for synthesis.
Jacket double glass reactor application
Double-layer glass reactor is a commonly used biochemical instrument. It is selected by modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can be concentrated, distilled, refluxed, separated and purified under constant speed, constant force and constant temperature. It is the ideal instrument for teaching, experiment, pilot test and production.
How the device works
Through the interlayer, a constant temperature (high temperature or low temperature) hot solution or coolant is injected, and the contents of the reactor are heated or cooled at a constant temperature, and stirring can be provided. The material is reacted in the reaction kettle, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the material can be discharged from the discharge port of the bottom of the kettle, and the operation is extremely convenient. It is an ideal equipment for modern chemical samples, petrochemicals, sample experiments, biopharmaceuticals and new materials.
Function and characteristics
1. The reactor body is made of borosilicate glass (GG-17 material), which has excellent physical and chemical properties, and the bottle body is transparent and visible reaction liquid material.
2. The main body is made of stainless steel frame + aluminum alloy, which is beautiful and strong and corrosion resistant.
3. Stainless steel stir bar is surrounded by PTFE, suitable for a variety of solvent agitation, pollution-free and corrosion-resistant.
4. The motor is agitated, running smoothly, with large torque, no spark and long life.
5. PTFE components + mechanical seals, ceramic bearings, proprietary technology, can guarantee a good vacuum and long service life.
6. This product can be equipped with explosion-proof frequency converter for the speed and temperature double digital display (can display the temperature inside the kettle). The speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) inside the kettle.
7. The overall structure is compact and reasonable, with a brake universal wheel, which can be moved as a whole and is easy to operate.
8. There is no blind corner glass oblique discharge valve, which can effectively reduce the stirring dead angle and facilitate the discharging.
9. This product is equipped with a vacuum display function, which can select the appropriate working vacuum for high boiling point materials.
ZZKD instrument manufacturers produce 10L, 20L, 50L single-layer glass reactors and double-layer glass reactors, and are available in explosion-proof versions.
