ZZKD is specialized in distillation and extraction instrument,Glass reactor is one of our main products and include: single layer glass reactor and double layer glass reactor, double layer glass reactors include: 2L jacketed glass reactor, 5L jacketed glass reactor, 10L jacketed glass reactor, 50L jacketed glass reactor, 100L jacketed glass reactor,etc.

The jacketed glass reactor is one of the most commonly used equipment in laboratories, and it can also be used in medicine, biopharmaceutical and other fields.Glass reactors can generally be divided into two categories, the first type is a double layer glass reactor, and the other is single layer glass reactor.The double layer glass reactor is made of double layer glass, the inner layer can be placed with a reaction solvent for stirring reaction, and the interlayer part can be added with a reaction solvent for condensation or heating reaction as required.

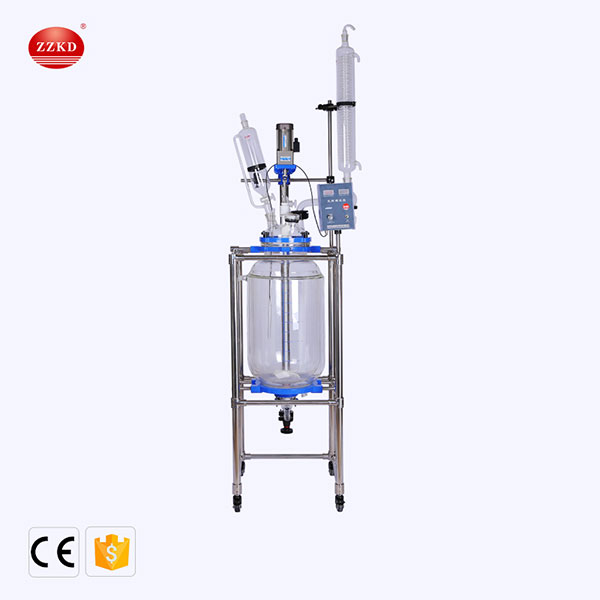

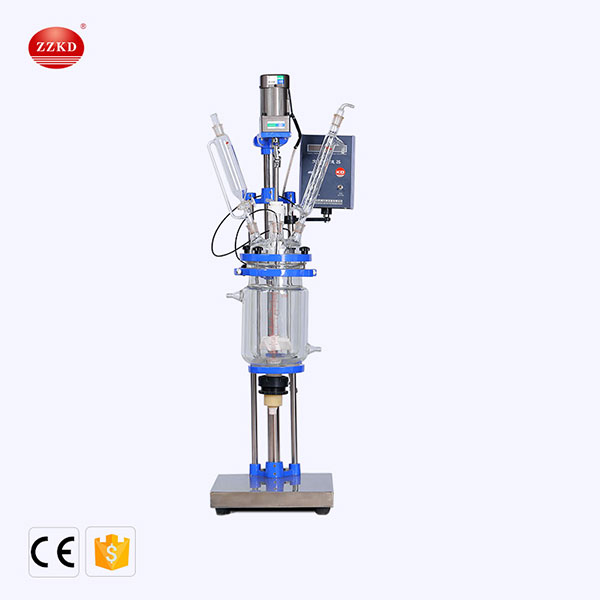

After years of improvement, our double-layer glass reactor has realized convenient high and low temperature control, rapid temperature rise and other functions, meeting the requirements of laboratories, chemistry, pharmaceuticals and other industries.The double-layer glass reactor has standard components, including: stirring motor, speed regulator, condenser, continuous dropping funnel, vacuum plug, vacuum tip, thermometer housing, thermally conductive silicone rubber tube, etc.Under the condition of constant temperature, the stirring reaction can be operated under normal pressure and negative pressure according to the requirements of use.In addition, the double layer glass reactor can also perform reflux and distillation of the reaction solution, biopharmaceuticals, fine chemical plants and the synthesis of new materials.
Six characteristics of double-layer glass reactor:

1. The double layer glass reactor can adjust the experiment frequency, control the temperature, and is also equipped with an AC induction motor.The double-layer glass reactor runs at a constant speed, without brushes or sparks.Safe and stable, and can achieve long-term operation.

2. The material of the double-layer glass reactor is mainly GG17 high borosilicate glass, which has good physical and chemical properties.

3. The glass interlayer can be injected with hot oil for heating reaction, or condensate can be added for low-temperature reaction.

4. The glass reactor can also be reacted at room temperature, and the heat of reaction can be taken away after the tap water is passed.

5. The lower discharge port is equipped with a flange port and a PTFE valve. There is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.

6. The double-layer glass reactor is equipped with a four-port reactor cover. The extra-large port is designed for easy cleaning. The standard port can be used for reflux and distillation.
