The commonly used reactors in the laboratory are stainless steel lab reactor, double jacketed glass reactor and Single Jacketed Glass Reactor. This article will mainly introduce the Single Jacketed Glass Reactor.

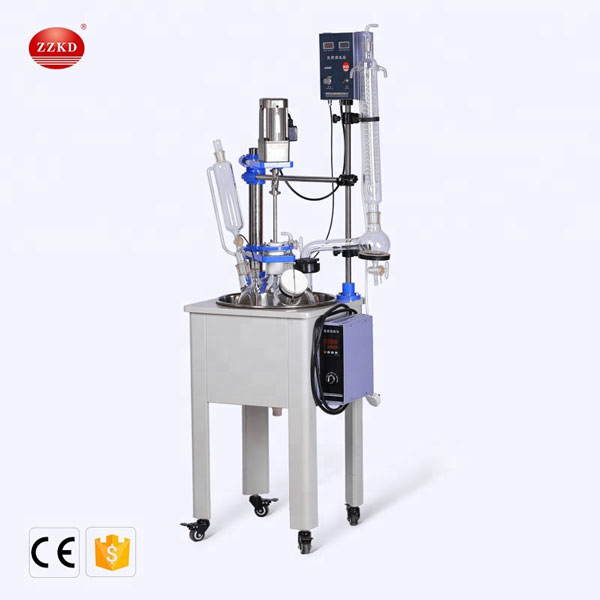

The Single Jacketed Glass Reactor directly heats the reactor body through the silver film heating plate, so that the materials in the reactor can be heated at a constant temperature and can provide stirring. The lid and motor part of the single-layer glass reactor are mechanically lifted (electrical lift is optional), and the kettle body can be rotated 360 degrees to facilitate the dumping and discharging of materials. And the ideal equipment for the synthesis of new materials.



1l jacketed reacto, 20l glass reactor, can be used for high temperature reaction of equipment, and can also be evacuated to perform negative pressure reaction. It is equipped with universal casters, which can be easily moved, operated, cleaned, installed and disassembled by one person, not only easy to use, Moreover, the structure is novel and practical, and the appearance is beautiful and generous; the single-layer glass reactor can carry out various solvent synthesis reactions under constant temperature conditions; it can be divided into a controllable fully sealed structure, which can continuously inhale various liquids and gases by using negative pressure, and can also be used in Reflux or distillation at different temperatures.




Features of Single Jacketed Glass Reactor:

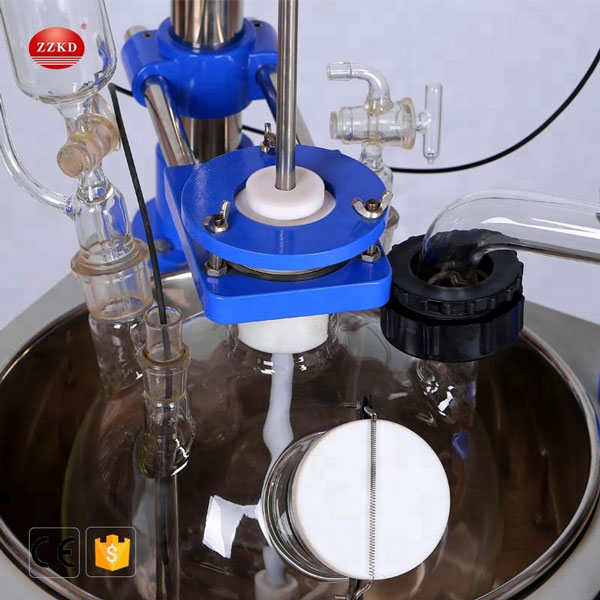

1. The composite seal of polytetrafluoroethylene can maintain a high degree of vacuum.

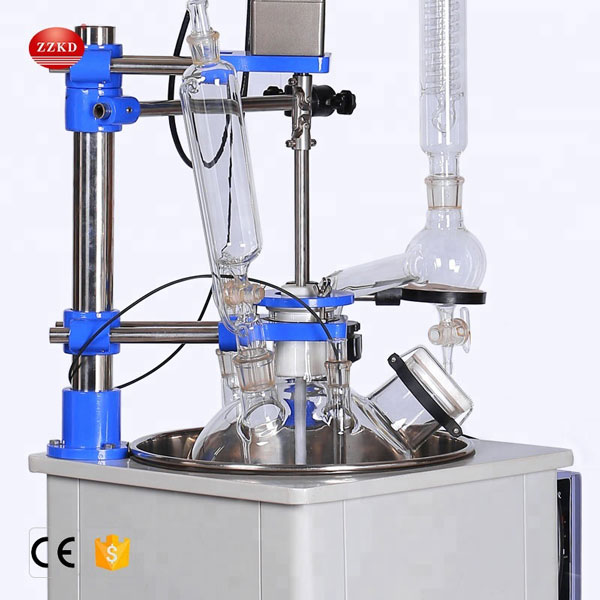

2. Adopt condenser to ensure high recovery rate.

3. The full set of glass is made of high borosilicate glass*, which has good chemical and physical properties.

4. The instrument adopts intelligent temperature control system, which can do the reaction under high temperature.

5. The lower discharge material has a flange port and a polytetrafluoroethylene valve, there is no dead angle in the container, and it can be disassembled to facilitate the discharge of solid materials.

6. The stirring motor has digital display, frequency conversion control, and is equipped with a reducer that increases torque.

7. Reasonable structure and exquisite materials. The mechanical parts are made of stainless steel and aluminum alloy.



How the chemglass 50l reactor works:

The single-layer glass reaction kettle directly heats the reaction kettle body through a layer of silver film heating plate, so that the materials in the reaction kettle can be kept at a constant temperature and can be stirred. The material is reacted in the reactor, and the evaporation and reflux of the reaction solution can be controlled. The reaction material is put in the reaction kettle, and the stirring reaction can be done by vacuuming; the external water (oil) bath can be heated by adding water or heating oil; and can control the evaporation and reflux of the reaction solution, constant pressure feeding and other functions. Optional refrigeration components, with refrigeration source for low temperature reaction.




Chemglass 50l reactor installation and operation instructions Notes:

1. The power connection must meet the power requirements of this product, and must have a reliable grounding to ensure that the shell of this product has a safe grounding. Glass instruments should avoid impact during transportation, disassembly, cleaning and use. After unpacking, you should first check whether there is any damage. If you find any damage, immediately contact the relevant departments to find out the reasons and negotiate remedies. The company shall not be liable for any damages caused by product defects due to the faults of sales, storage, transportation, assembly and users.



2. For the precious solution, a simulated process experiment should be done first, and when it is confirmed that the equipment can meet the process requirements, it will be transferred to normal use.



3. When evaporating easy, explosive and toxic solutions, users must take corresponding safety protection measures and abide by relevant safety operation regulations.



4. Prevent the electrical parts from being immersed in water and leaking electricity. When installing the conduit (rubber) on the glass parts, the rotating assembly method should be adopted, and the pressing method is prohibited to damage the glass parts.



5. Before the experiment, a simulation plan should be drawn up, and the experiment should be carried out step by step according to the plan. The equipment should be sealed and tested, and then the program test should be carried out after confirmation. The sample should be added slowly when feeding. Pay attention to the reaction state of the material during the experiment. Emergency measures should be taken when necessary. When shutting down, first turn off the vacuum source and low temperature heat source, and then turn off the power supply. Release the vacuum to restore the equipment to normal pressure. Release experimental materials by variety. Clean the equipment for the next use.



Single Jacketed Glass Reactor Sourcing/Custom:

To buy the most cost-effective ready single jacketed glass reactor.ZZKD has highly skilled professionals who are always ready to help you regarding all your ready single jacketed glass reactor-related queries. We are sincerely looking for your coming.
