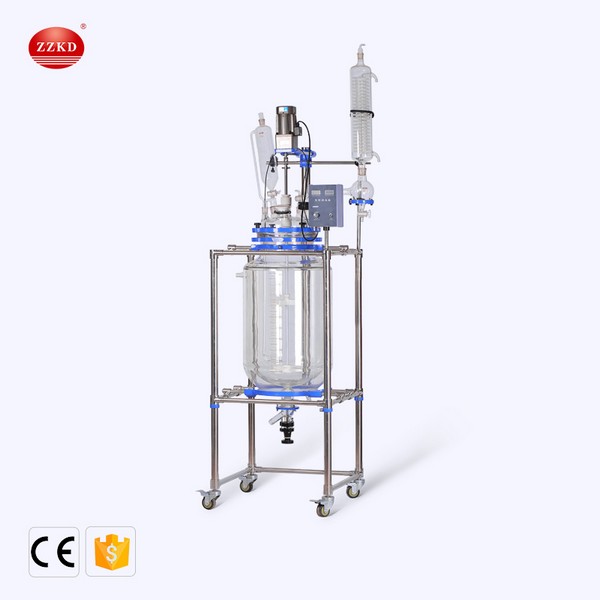

Double Layer Glass Chemical Reactor Agitated Principle

The 1l jacketed reactor , 20l glass reactor and stainless steel lab reactor are the most popular models of our company. Next I will introduce these products to you. The inner layer of double layer glass chemical reactor agitated is placed with a reaction solvent for stirring reaction. The interlayer circulates through the cold and heat source, and the Glass Reactor interlayer can provide high-temperature reaction (high temperature can reach 200℃). We can place the reaction solvent in the middle of the interlayer, by stirring the reaction under normal pressure or negative pressure; jacketed glass reactor is a constant temperature (high temperature or low temperature) hot solution or cooling liquid through the interlayer of the reactor, and the reaction kettle The material inside is heated or refrigerated at a constant temperature, and stirring can be provided. In this way, the medium in the interlayer of the glass reactor (such as freezing liquid, heating water or heating oil, etc.) is heated or cooled by stirring to perform a cyclic reaction. It is widely used as an ideal device in modern biochemical new material synthesis experiments.

Features Double Layer Glass Chemical Reactor Agitated

1. Made of high borosilicate glass material (GG17), with good chemical and physical properties.
2. It can be used in high-temperature range from 200℃ to low temperature -80℃.
3. The surface of the bracket is sprayed with Teflon, which is corrosion-resistant and maintains the aesthetics and service life of the whole machine. (Also optional spray).
4. Advanced frequency conversion speed regulation, frequency conversion controller, internal components have vacuum coating protection, corrosion resistance, optional full explosion-proof, safe and reliable.
5. The kettle body has two layers, and the heat source and cooling liquid are used in the middle of the interlayer to provide the needs for the reaction. The inner layer is the vacuum interlayer kettle body for heat preservation, and the second interlayer provides heat and cold satisfaction for the reflection. The fully transparent reaction bottle can make the reaction process clear at a glance.
6. Polytetrafluoroethylene (PTFE) components are sealed and specially designed to maintain the vacuum degree of similar products in the market (about -0.098mpa), and the discharge valve can discharge concentrated liquid and trace solid materials.
7. The jacket pressure control device is the company's new technology for the protection of the kettle body, which makes the work safe and reliable.
8. The kettle cavity and jacket are designed to have no dead angle, anti-corrosion, and no pollution structure.
9. After the reaction is over, the heat transfer medium can be completely eliminated without effusion.
10. The whole machine structure of this product is scientific, beautiful and practical.




Instructions For Use And Installation Of Double Layer Glass Chemical Reactor Agitated

Instructions for use of double layer glass chemical reactor agitated

1. The power supply voltage is consistent with that specified by the instrument.
2. No-load operation is not suitable for high-speed operation
3. Please keep the speed regulation and motor dry.
4. Install the machine first and then wire it to an electrician. The ground terminal must be grounded, and the high-temperature bath is connected to the air switch.
6. When working, pay attention to the impact damage to the glass by hard objects (watches, rings, belt buckles, etc.) on the body.
7. Be careful when connecting the vacuum pipe and water pipe, so as not to damage the human body by breaking the glass with excessive force.
8. When it is necessary to use a high-temperature circulating oil bath, pay attention to the damage to the human body caused by high temperature.

Installation of double layer glass chemical reactor agitated

 (Only for the reaction kettle below 5L, equipped with special personnel for installation above 5L)
1. After opening the package, check whether the main accessories of the machine are complete according to the packing list.
2. Assemble the frame with the stainless steel tube and the fixing parts as shown in the attached picture.
3. Install the electrical box on the right rear pole, tighten the screws, and insert the seven-pin plug. The vacuum gauge is installed on the left rear end, just tighten the screw.
4. According to the height of use, fix the circular bracket of the kettle on the vertical rod slider, put the kettle on the bracket, and use the semi-circular hoop to fix the neck of the kettle and insert it into the vertical rod slider respectively, and then tighten the fixing screws after closing. When installing, note that the main body of the reactor is vertical.
5. The stirring rod is fixed on the gear ring chuck of the main shaft of the motor, and the stirring rod passes through the middle of the cover to rotate the bearing, tighten the connector, and then adjust the position of the motor, paying attention to the vertical concentricity.
6. The slider on the pole is a stainless steel multi-purpose clip that e fixed and adjusted in different directions and heights.

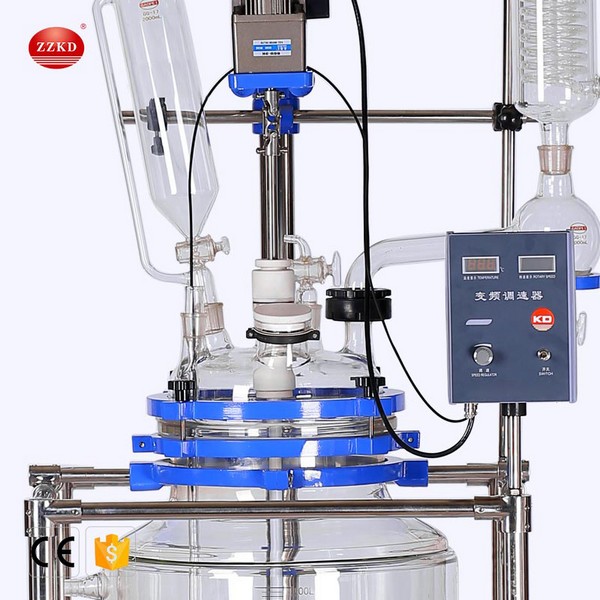

7. The 40# standard port on the left side of the bottle cap is inserted into a snake-type reflux condenser, the right 40# standard port is the feeding port to connect the constant pressure funnel, the 24# standard port in the middle and front is the thermometer sleeve port, and the back of the cap is the 34# standard port It is a multi-function spare port, with a discharge valve at the bottom, and the upper and lower parts of the kettle are the inlet and outlet of the circulating liquid. The lower port is connected to the circulating liquid inlet, and the upper part is connected to the circulating liquid return port.
8. Clean when installing glass instruments, apply Vaseline to each interface to prevent the glass from locking, and then apply vacuum grease to prevent air leakage.
9. Press the universal wheel fixing device to stir, if the stirring is stable, it means that the debugging has been completed.

Double Layer Glass Chemical Reactor Agitated At Best Price For Sale

We are one of the jacketed glass reactor manufacturers in China. The main capacity of double layer glass chemical reactor agitated sold by our company is 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L. If you feel like you need more information regarding double layer glass chemical reactor agitated or are hoping to get in touch with us, you can contact us on the website. We're always happy to help.
