Chemglass 20l Jacketed Reactor With Agitator For Sale

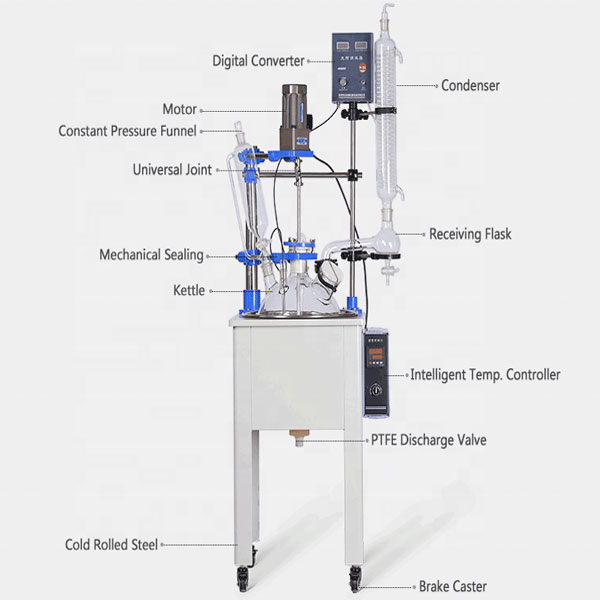

Jacketed reactor with agitator is designed for double-layer glass. The inner layer can be stirred with a reaction solvent, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under the condition of setting constant temperature, in a closed glass reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use, and the reaction solution can be refluxed and distilled. It is a modern fine chemical factory, biopharmaceutical Ideal pilot and production equipment for synthesizing new materials.
The company's Jacketed reactor with agitator integrates the advantages of similar domestic products, actively adopts customer suggestions and experience, and has formed 1l jacketed reactor, 20l glass reactor, and 2L, 3L, 5L, 10L, 30L, 50L, 100L series. The product design follows the high efficiency , practical, economic principles, all for the sake of users.
The main technical parameters are as follows:
★ Optional explosion-proof motor. (Explosion-proof motors have explosion-proof certification)
| Model | S-1L | S-2L | S-3L | S-5L | S-10L | S-20L | S-30L | S-50L | S-100L |
| Stirring Power(W) | 60 | 120 | 180 | ||||||
| Stirring Speed(rpm) | 0-600(max.1300) | ||||||||
| Stirring Shaft Diameter(mm) | 12 | 15 | |||||||
| Reaction Flask Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Voltage(V/Hz) | 220 50/60 | ||||||||
| Motor Torque(g/cm) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 | ||
About ZZKD:
The jacketed reactor with agitator produced by stainless steel lab reactor manufacturer Keda has large capacity and small capacity. It is an ideal equipment for experiment and production of modern chemistry, fine chemical industry, biopharmaceutical and new material synthesis. The chemglass 20l jacketed reactor is designed for double-layer glass, the inner layer is filled with reaction materials, and the interlayer is connected to the heat source or cooling source (water, oil or refrigerant) for cyclic heating or cooling reaction, and the jacketed reactor with agitator can also be vacuumized for stirring reaction.
Small-capacity jacketed reactor with agitator has 1L, 2L, 3L, 5L and 10L, such as 20L, 30L, 50L and 100L large-capacity jacketed reactor with agitator. Then, customers will have many doubts when purchasing jacketed reactor with agitator , below, I will answer two common questions for you.
1. How to choose vacuum equipment when doing mixing and stirring reaction?
The vacuuming equipment used in the laboratory is usually a circulating water vacuum pump. The circulating water vacuum pump can not only provide vacuum conditions for the experiment, but also provide circulating cooling water in the reaction device. Circulating water vacuum pump includes desktop circulating water vacuum and vertical circulating water vacuum pump. Desktop circulating water vacuum pump is generally used for glass reactors with small capacity.
2. Can a large-capacity double-layer kettle be equipped with a desktop circulating water vacuum pump?
Some customers who buy chemglass 20l jacketed reactor will ask us, can a large-capacity double-layer reactor be equipped with a desktop circulating water vacuum pump? Here, Keda, the manufacturer of double-layer glass reactors, tells you that it is not possible. When the chemglass 20l jacketed reactor does the mixing and stirring reaction, there are requirements for the amount of vacuum pumping and the flow rate of circulating water. The volume of the small circulating water vacuum pump of the desktop type is 15L. It is not enough for a double-layer glass reactor. At this time, a vertical circulating water vacuum pump is required. The capacity of the vertical circulating water vacuum pump is 50 liters, and the air extraction holes are all five-tap, and the air extraction rate is faster than that of the desktop. So chemglass 20l jacketed reactor should choose vertical circulating water vacuum pump when doing mixing and stirring reaction.
