Product description:

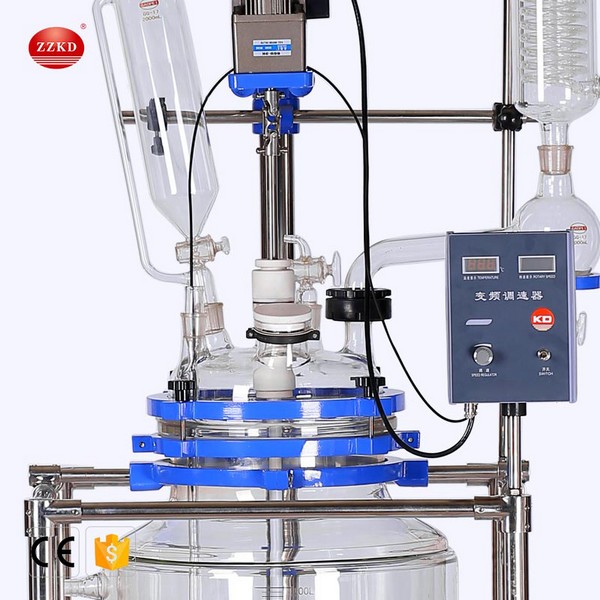

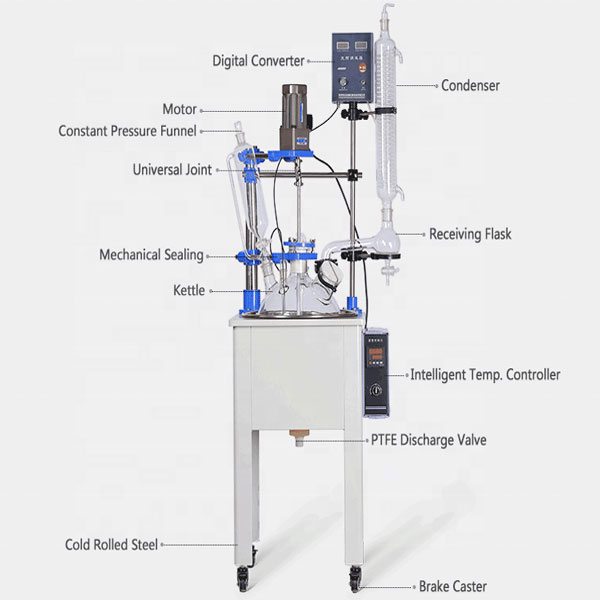

ZZKD-series single/dual Single Layer Glass Reactor are designed for synthetic reaction of different sorts of materials in a controlled temperature and vacuum surroundings. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to get well some materials, also at a managed rate of pace. For laboratory research, jacketed glass reactor is the idea reaction vessel to do new materials synthesis, mixing homogeneous reaction, extraction and purification, distillation and samples purification. Related Products For the continual stirred jacketed reactor vessles, it at all times combined with vacuum pump, oil btah, chiller or heating and cooling circulator to do the reaction underneath particular condition. ZZKD manufacture single layer, double layer and three layers glass reactors.

We’re proud to provide unbeatable lab and extraction tools. Our company carries over 1,000 different new and used lab tools objects. And we offer local product assist and a one-year warranty on all our reactors. Our Introductory Guide to Glass-Lined Equipment includes a reference chart for figuring out the safe temperature vary differentials between the product/vessel wall and thermal fluid. We are happy to debate the design of custom features for the AGI Benchtop Reactor in order to meet your particular course of need.

Product properties:

These 50l Jacketed Glass Reactor are made of high-quality and durable supplies corresponding to stainless steel, SUS304 & 316L steel, making them sustainable and long-lasting merchandise. These sturdy glass reactor jacket are highly resistant towards constant usages and distinct types of impacts, thereby providing reliable service. These products are geared up with high-speed dispersers that disperse and blend strong with liquid viscously. These glass reactor jacket include timing units that help in the reduction of babble incidence when working at low temperatures.

There are different capacities of Jacketed Glass reactors which may be out there. The jacket is supplied with a separate inlet and outlet for the heating/cooling media circulation. The response media is being stirred continuously through the means of heating. This improves the homogeneity of the reaction mass, avoids localized heating alongside the walls of the reactor, and ensures uniform heat throughout the reaction mass. 1l Jacketed Reactor vessel is used to control the temperature of its contents, with the assistance of an extra glass jacket that surrounds the inner container in which the reactants are placed. Other advantages of borosilicate glass as a process media include its non-reactive nature with practically most chemical substances.

Introduing the new Ai ReactorHeater 200°C heating jacket with temperature controller. Are primarily used for synthetic reaction, crystallization and concentration of several varieties of materials in a controlled temperature and vacuum setting. As a type of chemical reactor, jacketed one often is used to eliminate the expanded heat of response, or to minimize the viscosity of extreme viscous fluids. Entire physique of the flask is jacketed and has two hose connections for circulation of heating or cooling liquid. Indentations improve agitation of the contents of the flask during stirring. A Borosilicate glass reactor offers a distinctive advantage of response visibility, which is not potential in other supplies of building.

The warmth of reaction might be taken away shortly by way of water, cycling within the jacketed glass. Adjustment of fluid temperature within the cooling jacket can take many minutes on bigger sized vessels. Other notable performance components are a wide process temperature vary, high thermal shock resistance and vessel geometry similar to industrial vessels.

50l jacketed glass reactor Advantages:

1. Different kettle body specifications can be switched arbitrarily on the same frame.
2. It adopts maintenance-free carbon brushless DC motor, which can run continuously and stably for a long time and has excellent performance. It can be connected to a PC through the RS485 data transmission port to control the instrument and record the speed and torque data.
3. The motor kettle cover can be raised and lowered manually, and the kettle body can be rotated at 90 degrees, which is convenient for cleaning or loading and unloading.
4. Without any tools, swing arm fixture design, installation and all kettle body disassembly and replacement can be completed within a few minutes.
5. The designed annular spoiler in the interlayer and the heat-conducting liquid are spiral-flow heat-conducting, and the temperature control is more delicate and accurate.
6. The designed gas-liquid separator can be completely refluxed into the kettle or collected into the receiving bottle.


Jacketed Glass Reactor Specifications：

Model	S-1L	S-2L	S-3L	S-5L	S-10L	S-20L	S-30L	S-50L	S-100L
Stirring Power(W)	60				120				180
Stirring Speed(rpm)	0-600(max.1300)
Stirring Shaft Diameter(mm)	12								15
Reaction Flask Capacity(L)	1	2	3	5	10	20	30	50	100
Voltage(V/Hz)	220 50/60
Motor Torque(g/cm)	2000	2400		4800	1000	1200		1500	3000

Cost Of 50l Jacketed Glass Reactor:

ZZKD features a complete line of glass reactor jacket out there in distinct sizes, shapes, colors, and options relying on the models bought. These glass reactor jacket are additionally geared up with variable frequencies and can adjust the pace automatically in addition to a temperature show. These proficient glass reactor jacket include a liquid degree gauge within the type of a tubular glass stage meter, and vessel sterilizing. A disadvantage to 50l jacketed glass reactor is that they have to be welded to the vessel previous to glassing; typical jackets can be added to a vessel at any level in manufacturing. Also, it'll price you roughly 30% to 35% more than the identical reactor with a conventional jacket. In many situations this premium can be more than offset by decreased working costs, elevated heat transfer rates and better processing effectivity.
