Product introduce:

The glass reactor assembly is a generic term for a sort of vessel extensively used within the process industries. It is used for a variety of course of operations,similar to dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization.
A typical glass reactor market consists of a glass phase reactor with an agitator and integral heating/cooling system. The borosilicate glass vessels include sizes from 1L as a lot as 100L. Liquids or solids are feed by way of connections at the high cowl of the glass reactor market. Vapors are discharged by way of the connections on the high and the wastes are usually discharged out from the underside.



The advantages of the Jacketed Glass Reactor Lab with its versatility and visibility.
A single vessel system can carry out a sequence of different operations with out the need to break containment which is useful when processing toxic or extremely potent compounds.
Glass reactor market is designed double-level glass . The reaction materials is put into inside one, which can be done some stirring. In the interbed with totally different cold and hot medium (refrigerating fluid, scorching water and scorching oil), do some heat circulation and cooling reaction
In the constant temperature and strange strain, in addition to unfavorable strain,stirring reaction could be accomplished in seal manufacturer of glass reactor. Also back-flow and distillation.

ZZKD has been committed to selling 1l jacketed reactor,jacketed glass reactor 100l at the best price, becoming your wonderful enterprise companion. The costs of these units might vary relying on the sorts of capabilities they have. The costs of those devices may differ relying on the sorts of capabilities they've.What you possibly can expect, relying on the capability and options, is completely good for the worth.If you have a big enterprise or need to significantly scale up your manufacturing then please contact us.


Application of Jacketed Glass Reactor Lab:

1. Vacuum Distillation
2. Multi-component reactions
3. Gas introduction into liquid part
4. Extraction of multi phase mixture
5. Crystallization
6. Reflux
7. Multiple chemical reactions liquid/liquid, liquid/solid
8. Low temperature chemistry
9. Cell Culture

Borosilicate glass reactor market have many functions and uses in today’s research laboratories.
The reactors complement bench scale research where the product quantity runs between 1L up to100 L.
Because manufacturer of glass reactor consist of varied parts it's flexible and straightforward to use a regular setup or to design one to suit a specifi capplication. As they are primarily glass, the whole response is visible at anytime. The glass reactor market design permits for complete capture or containment and restoration of the products in the reaction whether or not they
are liquid, stable or each.



Compact ground standing systems:

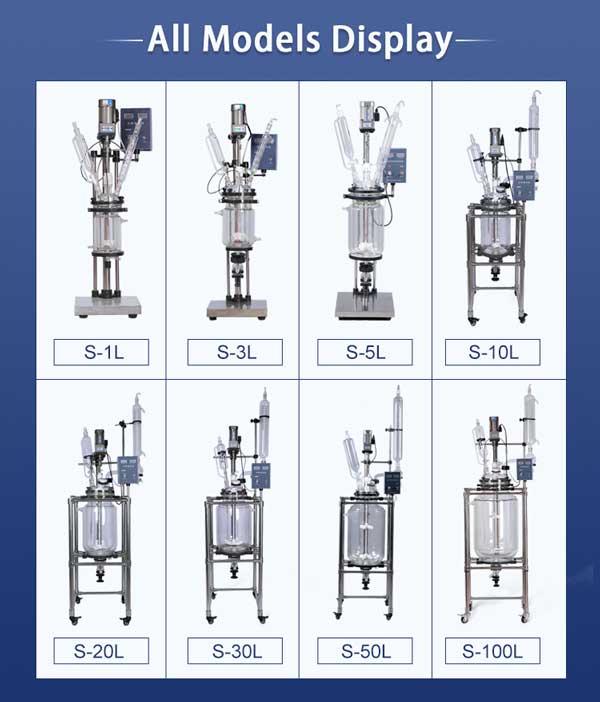

• jacketed vessels with volumes of 1L,2L,3L or 5L, 20l glass reactor
• Stable Frame systems: jacketed vessels with volumes of 2L,10L,20L,30L,50L,80L or 100L
•Wide range of equipment: circulators, 5, 6 or 7 port lids, stirrers, stirrer motors, reflux condensers, addition funnels,distillation methods and extra.
• Easy to use: vessel height adjustment and straightforward stirrer motor adjustment.
• Safe and safe: vessels are independently supported on the neck and base and have sprung bottom outlet valves.
• Easily personalized: contact us for personalisation.
• Chemically resistant: GG17 glass and PTFE sealing parts are chemically resistant.
•Robust and stable:secure stainless steel for stability and sturdiness


Features:

1.It adopts AC frequency control of motor velocity So the rev is steady , no spark seem,extensive moment, protected, and can be used because the fixed working.
2. All units of glass equipment are made up of GG17 or GG33 with the double-layer jacketed construction. The thickness of the glass is 5-7 mm with good chemical and physical properties.
3. The teflon elements sealing method makes it in a state of excessive vacuum ,anti-acid and anti-alkali.
4. It can work underneath the strange strain and negative strain and may attain the -0.098Mpa optimistic pressure.
5. Constant temperature and numerical management oil tub pan, with lovely and anti-corruption stainless-steel inner tube ,is controlled by the micro-computer which makes it work accurately, low fluctuation and conveniently.
Five-mouth aircraft manufacturer of glass reactor is connected by the PTFE and is demounted simply with the traits of good sealing ,anti-acid and anti-alkali.
6. The manufacturer of glass reactor stirring bar’s inside bellycore is produced from the stainless steel specifically ,lined by the PTFE tube which has the sturdy capability to anti-acid and anti-alkali.The bar is manufactured by the application of military industrial know-how, so it boasts finer work and is operated with facility.
7. The drain gap contains the flange mouth and the PTFE drain valve which go away no useless angle and rudimental materials. The entire set of drain valve could be simply demount and the inside manufacturer of glass reactor may be cleared conveniently.
8. The real time temperaturanzeige
