Lab scale jacketed glass reactor|Glass reactor supplier
Instrument introduction

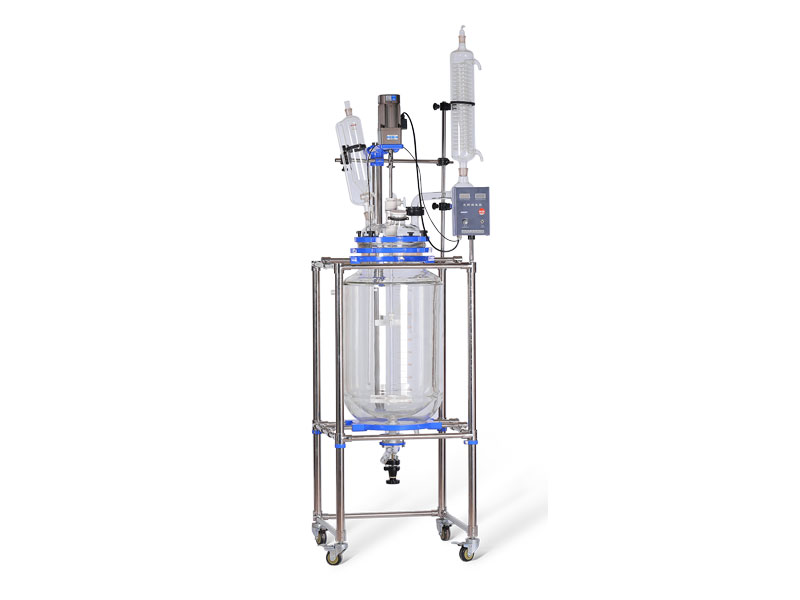

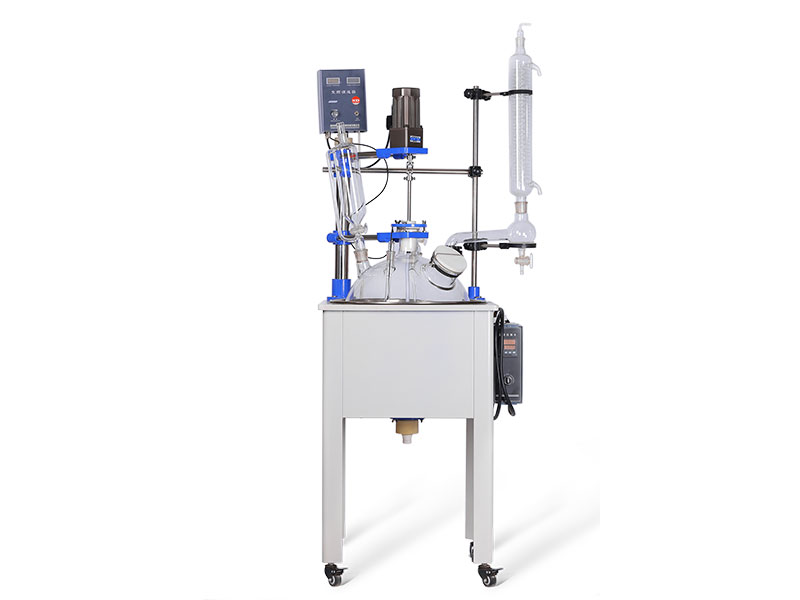

The laboratory jacketed glass reactor, also known as the peptide solid phase synthesis reactor, is mainly used in organic synthesis experiments such as pharmaceutical, chemical, laboratory, etc.; it is also the main tool for the pilot scale of biochemical pharmaceutical companies.Glass reactors are available in single-layer glass reactors and double-layer glass reactors.
►Laboratory glass reactor is mainly used for filtration at normal temperature, atmospheric pressure or negative pressure;
► Jacketed glass container filter reactor is mainly used for high temperature or low temperature, filtration under atmospheric pressure or negative pressure.
The intermediate layer can be connected to a cooling or heating device to enable precise control of the reaction or crystallization temperature. Temperature control range: -80 ° C ~ 200 ° C
Instrument function
■All glass components are borosilicate glass 3.3 material with excellent physical and chemical properties
■The joint interface is evenly ground, with PTFE sealing ring, the reactor vacuum can reach static 0.098 Mpa
■Discharge neck without dead angle PTFE discharge valve
■ Digital display stirring speed, frequency control, stable work
■ Stirring rod is stainless steel, full PTFE coating, seamless, no residue, easier to clean
