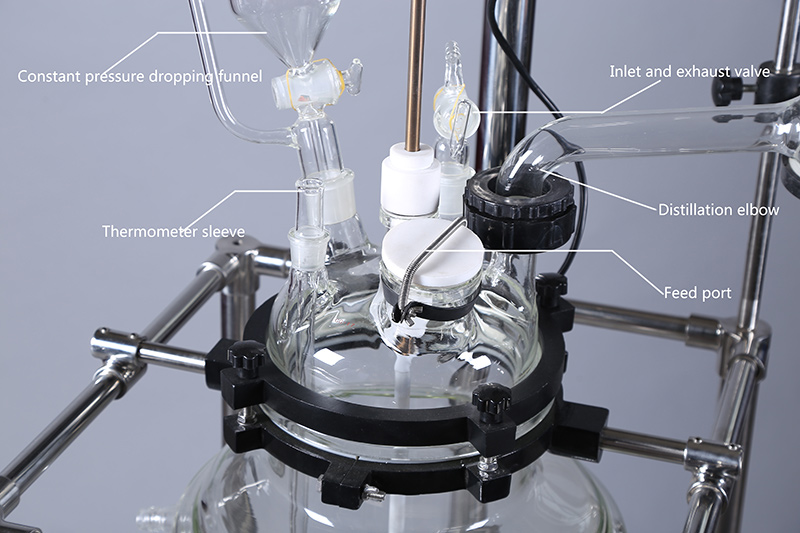

The double-layer glass reactor has five holes, which are a Thermometer sleeve, a Constant pressure dropping funnel, a Distillation elbow, an Inlet and exhaust valve, and a Feed port. On the single-layer name, the Feed port and the Thermometer sleeve are well understood, but what is the role of the Constant pressure dropping funnel, the Inlet and exhaust valve, and the Distillation elbow?



The constant pressure dropping funnel is a liquid feeding device of the double-layer glass reaction kettle, and provides liquid feeding material in the process of the reaction, and can also satisfy the continuous dropping function of the material in the reaction process;



The innlet and exhaust valve provide a deflation function for the vacuum distillation experiment, and can also be used for extraction and feeding during the experiment;



The distillation bay head should be used with a condenser, and the reaction process can be done by reflux or extraction, which is very convenient;



The thermometer sleeve is set for measuring the temperature of the material in the kettle body, and the material is placed to corrode the probe;



We have not only a double-layer glass reactor of more than 10L, but also a small double-layer glass reactor of 10L.
