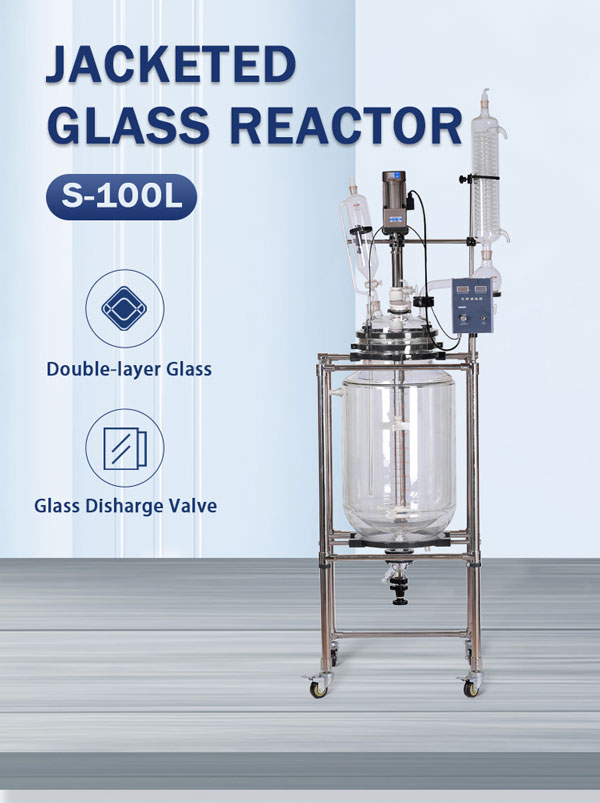

Chemglass 100l reactor is just one of many reactors, and there are many kinds of jgr series jacketed glass reactors. It is divided into single layer, double layer and high pressure type. In fact, there are many applications and uses of double jacketed batch reactor, but mainly in some research industries or places where experiments need to be done. Double wall glass reactor is a commonly used biochemical instrument, which is widely used in modern fine chemicals, biopharmaceuticals, scientific research and experiments and other industries.It is an ideal equipment for teaching, experiment, pilot test and production.

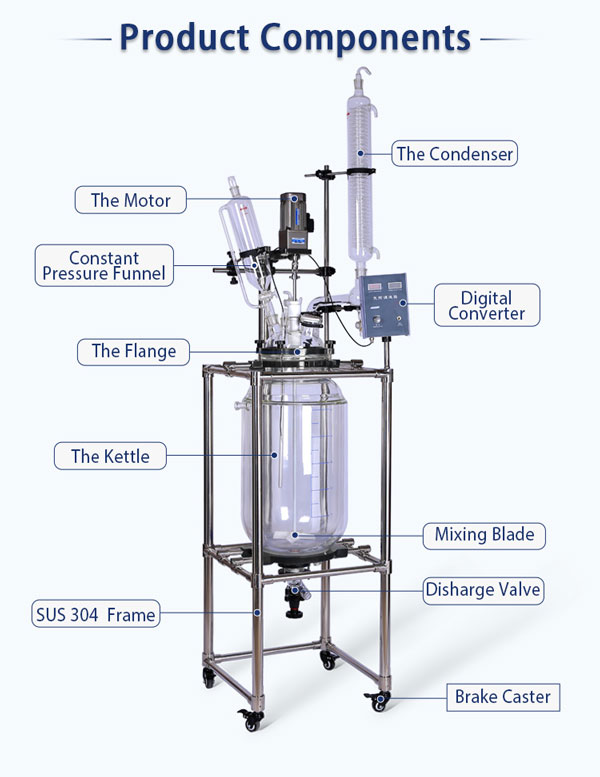

Composition of glass reactor

1. The kettle body and the kettle cover are made of stainless steel. The kettle body is connected with the flange through threads. The kettle cover is a normal plate cover, and the two are fastened and connected by the main bolts and nuts distributed in the circumferential direction.

2. The main sealing port of the autoclave adopts the double-line seal of type A, and the other sealing points adopt the sealing form of the line contact between the arc surface and the plane, and the arc surface and the arc surface. Good sealing effect.

3. The chemglass 100l reactor is equipped with a barrel-shaped silicon carbide furnace core. The electric furnace wire is passed through the furnace core.

4. The lid of the kettle is equipped with a pressure gauge, a bursting membrane safety device, a vapor-liquid phase valve, a temperature sensor, etc., which is convenient to know the reaction situation in the kettle at any time, adjust the proportion of the medium in the kettle, and ensure safe operation.

5. The agitator is driven by a servo motor through a coupling. The purpose of controlling the stirring speed can be achieved by controlling the speed of the servo motor.

6. The upper part of the spacer is equipped with a tachometer coil. When the integrated stirrer and the inner magnetic ring rotate, the tachometer coil generates an induced electromotive force, which corresponds to the stirring speed. The potential is transmitted to the tachometer to display the stirring speed. Rotating speed.

7. When the operating temperature is high, cooling water should be passed through, and the magnetic steel temperature is too high to demagnetize.



Features of Chemglass jacketed reactor


1. The reactor body is made of high borosilicate glass (GG17 material), which has excellent physical and chemical properties. The bottle body is transparent and the reaction liquid can be seen.

2. The stainless steel stirring rod is covered with tetrafluoroethylene, which is suitable for stirring various solvents, and is pollution-free and corrosion-resistant.

3. Explosion-proof motor stirring, stable operation, large torque, no spark and long life.

4. PTFE components + mechanical seals, ceramic bearings, proprietary technology, can ensure good vacuum and long service life.

5. The explosion-proof frequency conversion governor has double digital display of speed and temperature (it can display the temperature in the kettle). The speed can be set by the speed control knob, which is intuitive and convenient; it is also equipped with a temperature probe (PT100) for the temperature in the kettle.

6. The overall structure is compact and reasonable. It is equipped with a universal wheel with brake, which can be moved as a whole and is easy to operate.

7. With vacuum display function, the best working vacuum degree can be selected for high boiling point materials.



The working principle and use of Chemglass 100l reactor


Glass reactor is an ideal equipment for modern chemical sample experiments, biopharmaceuticals and new material synthesis. It is widely used in laboratories, then:


1. What is the general working principle of Chemglass jacketed reactor?


Chemglass jacketed reactor is stirred and reacted under normal pressure or negative pressure in a closed container under a set constant temperature, and can control the evaporation and reflux of the reaction solution. Generally, there are single-layer glass reactors, double-layer glass reactors and triple-layer glass reactors.


2. What are the uses of the single-layer glass reactor?

The single-layer glass reactor can provide high temperature reaction (the highest temperature can reach 300℃); it can also be evacuated to do negative pressure reaction. The reaction part of the instrument is a controllable and fully sealed structure. It can continuously inhale various liquids and gases by using negative pressure, and can also perform reflux or distillation at different temperatures.


3. What are the uses of double-layer glass reactors?

Chemglass jacketed reactor can provide high temperature reaction (the highest temperature can reach 300 ℃); double glass reactor can also do low temperature reaction (the lowest temperature can reach -80 ℃); double glass reactor can be evacuated to make The reaction was reduced in vacuo. Its unique design makes the test temperature control more precise and ensures that the experiment is carried out in a safer environment
●Stirring reaction
It has the function of stirring, by putting in different liquids or substances, stirring, preventing the liquid from evaporating and refluxing. Make the mix purer.

●Purification reaction
Through a series of steps down, it is possible to extract the pure liquid, and the desired. In this purification process, special attention is required. Paying attention to each step can guarantee the purity of the final extraction.

●High temperature reaction
The maximum temperature is 30 degrees Celsius. There is a high temperature reaction, and naturally there is also a low temperature reaction, and the low temperature reaction can reach minus 80 degrees Celsius. It is resistant to high temperature and high and low temperature. So that many experiments can be carried out normally.
