Reactor manufacturer ZZKD offers you a wide range of reactor equipment. Our reactor equipment is CE and ISO certified. Please be assured of product quality.
Below I will introduce you to our reactor equipment.
The glass reactors produced by our company can be divided into jacketed glass reactors (also known as double-layer glass reactors), single-layer glass reactors and explosion-proof glass reactors.
The glass reactors produced by our company can be divided into jacketed glass reactors (also known as double-layer glass reactors), single-layer glass reactors and explosion-proof glass reactors.

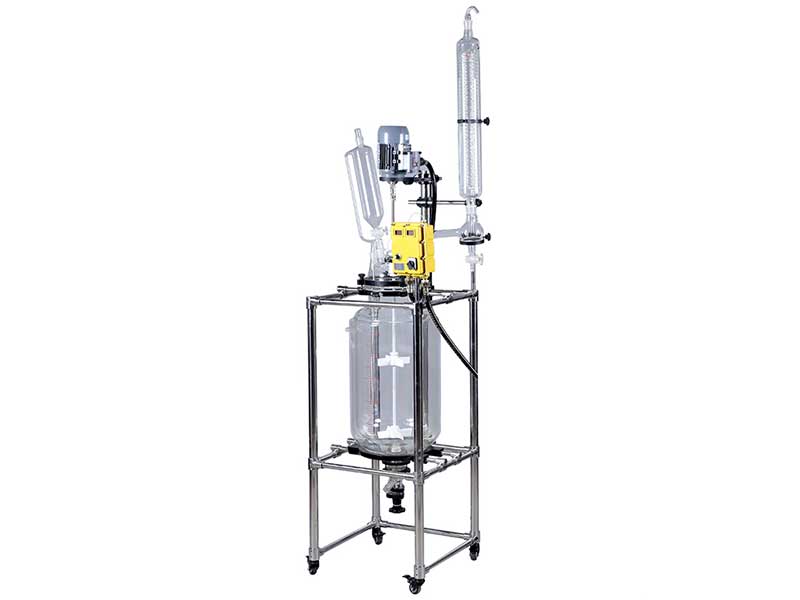

- Jacketed glass reactor vessel
The double-layer glass reactor can add hot oil or water to the glass interlayer, and the reaction can be carried out under high temperature conditions through a loop; the reaction can be carried out under low temperature conditions in a glass interlayer to which a coolant is added.
The glass portion of our jacketed glass reactor uses GG17 high borosilicate glass with good chemical and physical properties. The thickness of the glass is. The stirrer in the glass reactor has a stirring speed range of 10-1100r / min, which can help the material inside to be fully mixed.
The heating method of the small-capacity single-layer glass reactor can be an electric heating mantle or a water/oil bath. They are all made of 304 stainless steel one-time compression molding, which has good corrosion resistance. Of course, if you have the requirements of a low temperature reaction experiment, our single layer glass reactor can also be customized.
Our glass reactors have a matching insulation jacket that prevents the heat in the reactor or the temperature of the coolant from being lost.-Single layer glass reactor
The single-layer glass stirred reactor produced by our company has a spherical reaction bottle when the capacity is ≤80L, and the reaction bottle is cylindrical when the capacity is ≥80L. This design is mainly to enable the material in the reaction flask to be uniformly heated.
The heating method of the small-capacity single-layer glass reactor can be an electric heating mantle or a water/oil bath. They are all made of 304 stainless steel one-time compression molding, which has good corrosion resistance. Of course, if you have the requirements of a low temperature reaction experiment, our single layer glass reactor can also be customized.
-Explosion-proof glass reactor
Our jacketed glass reactors (double glass reactors) and single layer glass reactors are customizable for explosion protection.
It is mainly reflected in the protection of the motor and the controller, avoiding the explosion of the motor and the controller and damaging the main glass portion of the reactor. Explosion-proof motor and explosion-proof intelligent temperature controller, in line with Q / HA01-2005 standard, can guarantee the safety of users.
A range of customizations are available according to your actual needs, and stainless steel reactors are also explosion-proof.

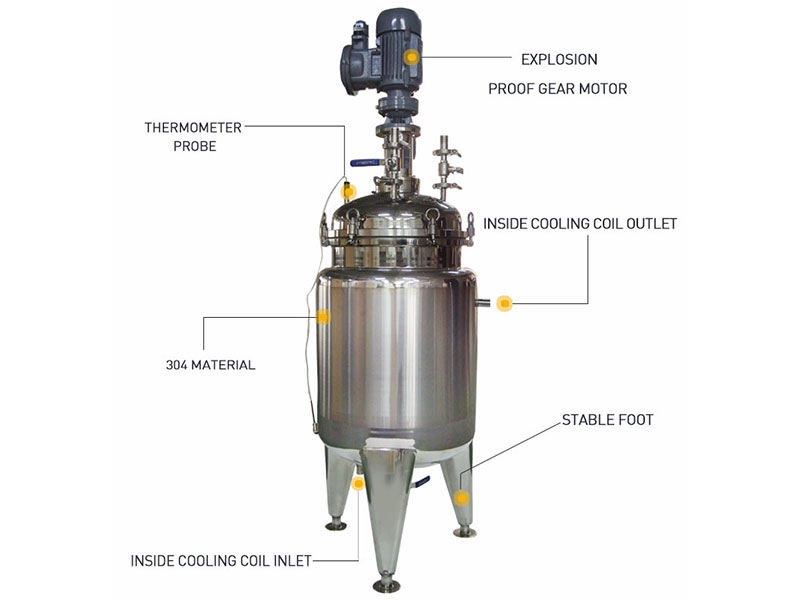

-Stainless steel reactor
The stainless steel reactor is made of SUS304 or SS316L as the main material. Its heating and cooling is achieved by means of a sandwich, half pipe or coil. And has a cycloid reducer or stepless reducer.
A range of customizations are available according to your actual needs, and stainless steel reactors are also explosion-proof.
If you are interested in our products, please leave us a message below or send us an email.
