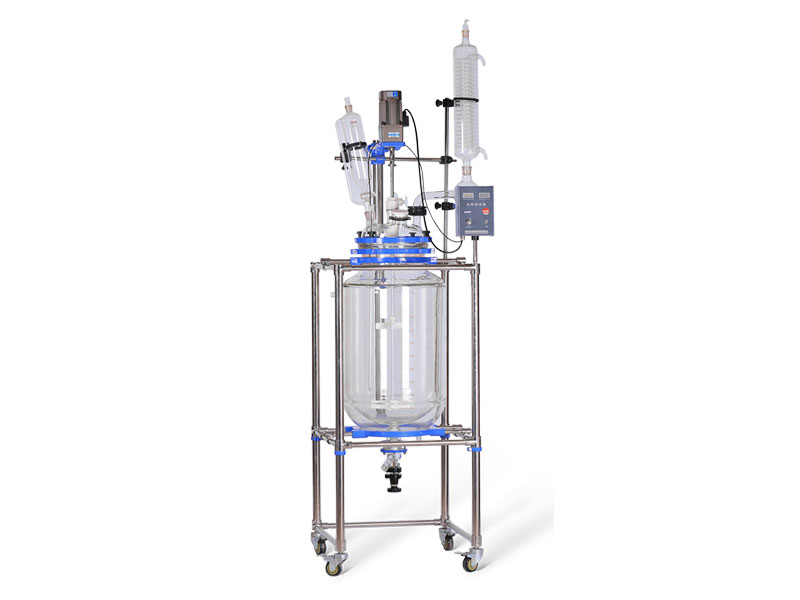

S-100L Double glass reactor vessel application
Double-layer glass reactor S-100L Features: The inner layer of the jacketed glass reactor is placed with the reaction material. At the same time, vacuum and speed mixing can be carried out. The interlayer can be introduced into the freezing liquid, water and high temperature liquid to heat and cool the material. It is used in experiments, pilot tests and production of chemical, fine chemical, biopharmaceutical new material synthesis. The product can be combined with circulating water multi-purpose vacuum pump, diaphragm vacuum pump, low temperature circulation (vacuum) pump, circulating cooler, constant temperature circulator, low temperature coolant circulation pump, closed refrigeration heating cycle device (also known as high and low temperature circulation device). System device.
l. High borosilicate glass material with excellent physical and chemical properties
2. Can be used in high temperature range from high temperature (300 °C) to low temperature (-120 °C)
3. It can work under normal pressure and vacuum conditions. Under vacuum, the vacuum can reach below -0.095MPa.
4. Digital display stirring speed, variable frequency, constant speed mixing system, stable operation
5. Single or double PTFE mixing paddle (stirring blade), corrosion resistant
6. Anti-corrosion discharge valve without dead space design
7. The cooling or heating solution of the interlayer can be completely eliminated after the reaction is completed, and no liquid is accumulated.
8. The overall structure is novel, practical and beautiful.
1. PTFE sealed mixing port + stainless steel frequency mixing system, corrosion resistance, wear resistance, high strength, high sealing
2. Standard high-efficiency reflux condenser, optional distillation/reflow condenser and collection system ball-joint connection, effectively reduce condenser vibration and safer glass parts
3. Standard screw port Optional 40 flange port (with stainless steel detachable adapter)
4. Standard 34 glass glass piston glass feeding valve Negative pressure liquid feeding, negative pressure inflation can be connected with vacuum tube
5. Standard 24 glass temperature measuring tube, optional digital thermometer, thermometer is not directly in contact with reactants
6. No dead angle discharge valve: no reaction dead zone, no grease pollution
7. Metal protective cover (optional): Prevents the human body from coming into contact with the high temperature cryogenic reaction bottle during operation, reducing the damage of the bottle bursting accident
Model | S-100L Jacketed Glass Reactor |
---|---|
Stirring Power(W) | 180 |
Stirring Speed(rpm) | 0~600(max.1300) |
Stirring Shaft Diameter(mm) | 15 |
Reaction Flask Capacity(L) | 100 |
Voltage(V/Hz) | 220 50/60 |
Motor Torque(g/cm) | 3000 |
Note | 304All Stainless Steel Frame |
