The working principle of the double-layer glass reactor: through the double-layer reactor body interlayer, injecting a constant temperature (high temperature or low temperature) hot solution or coolant, the material in the reactor is heated or cooled at a constant temperature, and stirring can be provided. The equipment can carry out vacuum stirring reaction, distillation and concentration reaction, separation and extraction, reaction heat test, we can take the tap water into the jacket to take away the heat of reaction, the material reacts in the reaction kettle, and can control the reaction solution. Evaporation and reflux, the reaction is completed, the material can be discharged from the discharge port at the bottom of the kettle, and the operation is extremely convenient.



The double-layer glass reactor is designed as a double-layer glass, and the inner layer is placed in a reaction solvent to perform a stirring reaction, and the interlayer can be heated or cooled by a different cold and heat source (refrigerant, hot water or hot oil). Under the constant temperature condition, the sealed glass reactor can be stirred under normal pressure or negative pressure according to the requirements of use, and can carry out reflux and distillation of the reaction solution. It is a modern fine chemical, biopharmaceutical and new material. The ideal pilot and production equipment for synthesis.

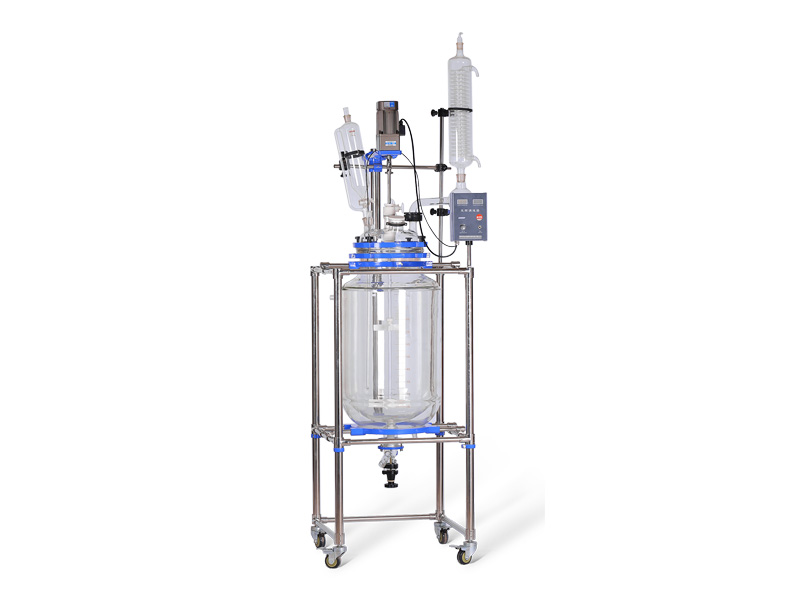

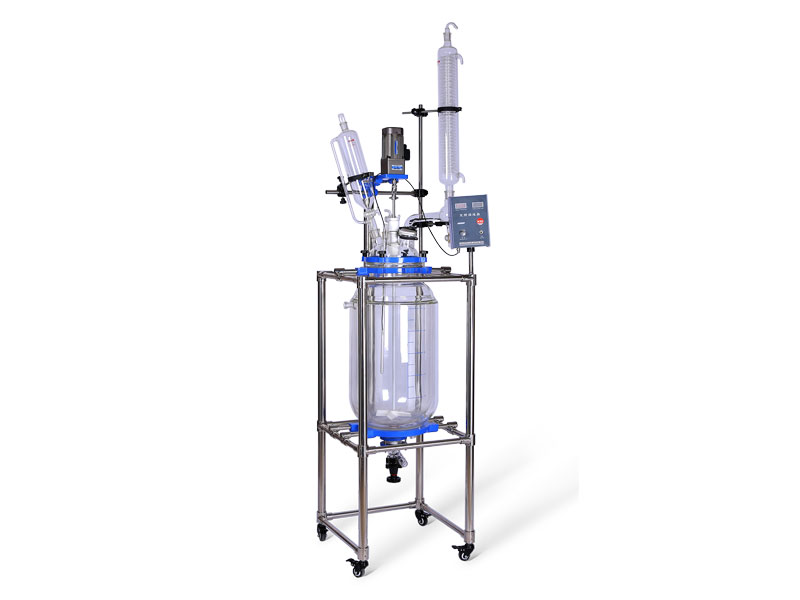

S-50L Double layer glass reactor	S-100L Double layer glass reactor

1. Vacuum stirring reaction

2. Constant speed running and mixing reaction

3. Can be distilled, refluxed, concentrated

4. Negative pressure operation, liquid separation function

5. Rectification by assembling a rectification column

6. Assembled into a glass reactor production line according to specific requirements.

7. For plant extraction, concentration has good process effect

8. Stirring and separating, disposing the liquid separation device, the effect is obvious 9. Performing the reaction of ultrafine powder

10. It can replace the rotary evaporator, carry out high-purity material concentration, configure ultrasonic stirring, and reduce the reaction time by multiple times.

1. G3.3 borosilicate glass is used, which has good chemical and physical properties.

2, alloy steel mechanical seal, Teflon joint, to maintain high-precision sealing under working conditions.

3, Pt100 sensor probe, high temperature measurement accuracy, small error, effectively improve work efficiency.

4, Japan technical exchange gear reducer motor, strong torque, no noise.

5, double PTFE stirring paddle, suitable for mixing and mixing of low to high viscosity liquid.

6, PTFE discharge valve, can be active interface, the discharge is completely fast.
