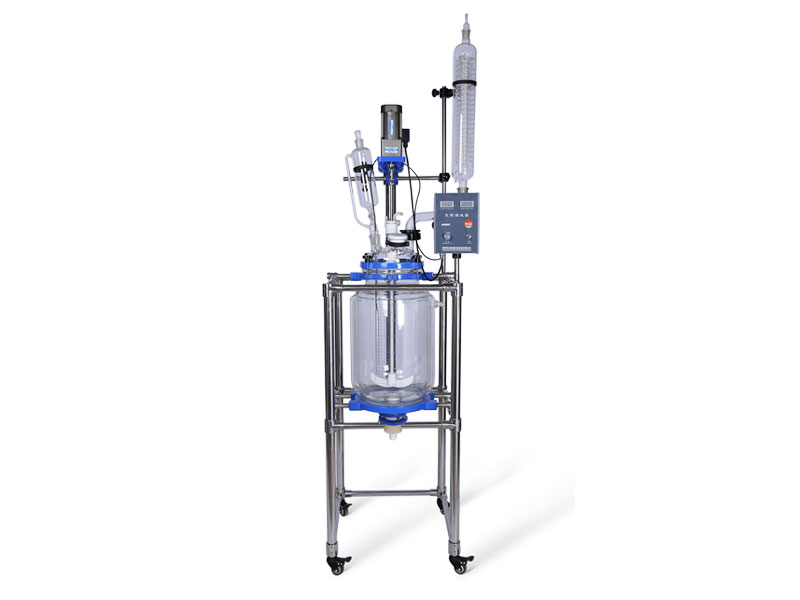

Lab equipment 30L chemical jacketed glass reactor vessel
Due to structural and glass material problems, S-30L double-layer glass reactor should pay attention to some details in use, especially large-volume glass reactors such as 50~150L, which is slightly weaker than large industrial stainless steel reactors. Layer glass reactor should pay attention to these use details
1. Placing problems
Although the double-layer glass reactor has separate brackets, in order to facilitate the movement of the bottom there will be casters, so the stability is not strong, so the flat place should be selected when placing, to ensure that the mechanical stirring shaft is perpendicular to the ground, during use There can be no shaking in the middle. The large double-layer glass reactor has a large reaction volume. The concentration of solvent in the surrounding air is large during use, so the ventilation effect must be good. If it is some dangerous gas, it is better to have a gas concentration alarm around it. Concentration is convenient to find in time to avoid potential safety hazards.
2. Feeding attention
The double-layer glass reactor generally has a small feeding port, so it is not as good as the industrial reactor. It is recommended that the amount of feed should not be too large. According to the temperature, reflux and pressure of the reaction, the appropriate amount should be invested. The amount should not exceed 2/3 of the kettle body. In particular, when feeding with a funnel, a corresponding moving ladder is required to allow the worker to feed. It is recommended that the solid reagent be preferably added to the kettle as a solution, and the liquid reagent can be pumped into the kettle through a matching water pump or oil pump.
3. Selection of cold and heat sources in the interlayer of double-layer glass reactor
The cold and heat source in the interlayer should be selected according to the needs of the medium, especially pay attention to the viscosity of the medium. If the viscosity of the medium is too large, the circulation pump may not move, resulting in poor circulation and failure to achieve good temperature control. We can't rush to replace the high-power circulating pump, because if the pressure is too large, it may cause the glass reactor to rupture. We, as a manufacturer, will give customers some guidance and choose the corresponding cold and heat source. For example, ice or ethanol is usually used at low temperature, and water bath is used at normal temperature. Oil bath or sand bath can be selected at high temperature. Of course, specific analysis can be contacted for help.
4. Insulation layer
Since the interlayer in the middle of the double-layer glass reactor is thin, the heat preservation performance is poor, and the heat preservation material is needed to heat the kettle body, and the liquid guide tube is also wrapped with the heat insulating material to ensure the heat preservation effect.
The above is about the use of double-layer glass reactor, please contact Zhengzhou Keda Machinery Equipment Co., Ltd. if you have any requirements. Zhengzhou Keda Machinery Equipment Co., Ltd. is a company that enjoys a wide reputation both at home and abroad. For more than a decade, Zhengzhou Keda Machinery Equipment Co., Ltd. has been committed to the manufacture of laboratory instruments. If you want to know about our products or are interested in purchasing our instruments, please feel free to contact us. We are happy to assist you. Contact us by clicking on the official website.
