What is the material of each part of the glass reactor?
Both the single-layer glass reactor and the double-layer glass reactor consist of four major components, namely a glass portion, a sealing portion, a stirring portion, and a support portion. So, what materials are used in all parts of the glass reactor?

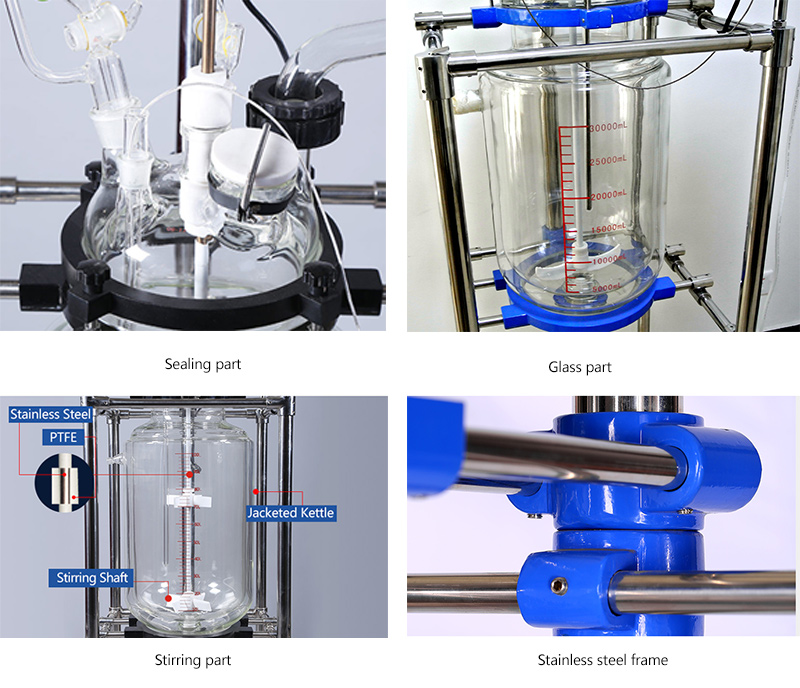

Glass reactor assembly
The glass part includes the kettle body, the kettle lid, the constant pressure dropping funnel, the distillation elbow, the serpentine condenser, the thermometer casing, the inlet and outlet gas valve, the lower discharge valve, the suction elbow, and the hollow plug. High borosilicate glass is used. High borosilicate glass It is a special glass material with low expansion rate, high temperature resistance, high strength, high hardness, high light transmittance and high chemical stability. Due to its excellent performance, the application of high borosilicate glass is also coming. More extensive
The support part, the support part of the single-layer glass reactor comprises a stainless steel heating bottom plate and a brake caster; the support part of the double-layer glass reaction kettle comprises a stainless steel stern frame and a brake caster, and the stainless steel well frame is made of 304 material, and the function is to the entire kettle body The supporting function can protect the double-layered kettle body; the brake casters are located at the four corners of the stainless steel sluice frame, which is made of rubber material and is wear-resistant. After the double-layered kettle is placed, the brake device can be pressed to fix the typhoon frame. effect;
Stirring part, the mixing blade is made of Teflon, which functions as a stirring function. It can be connected and stirred by stainless steel wrapped with PTFE stir bar and mixing motor. The material can be fully stirred and mixed (can be customized according to the need for paddles, etc.) Stir
The sealing part, the single-layer glass reactor and the double-layer glass reactor are all mechanical seals, and the mechanical seal is located in the PTFE stirring plug of the stirring lid of the kettle lid to ensure the sealing of the stirring rod during the stirring rotation, so that the kettle body No air leaks affect the experiment.
