High temperature oil bath suppliers to provide you with detailed product specifications

The high temperature constant temperature circulating oil bath is a circulating and constant temperature heating device specially designed and produced by our company for the heating of double-layer glass reactor. It has the characteristics of compact and reasonable structure, safe and convenient use, precise temperature control, controllable output flow and energy saving. It can conveniently provide a circulating constant temperature heat source for the double-layer reaction kettle, and can also be used for other devices and occasions requiring application of circulating constant temperature heating.

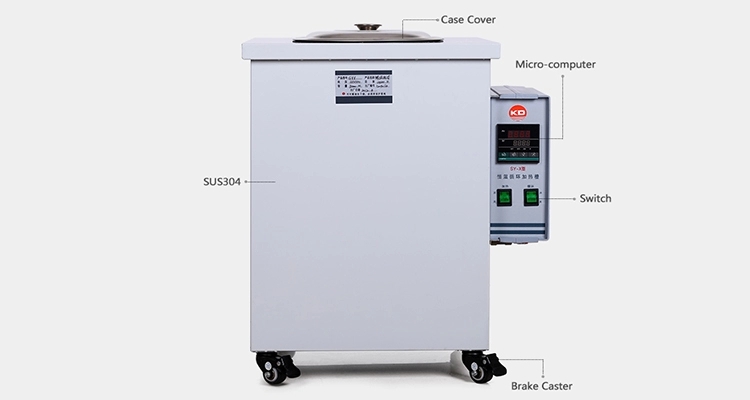

high temperature constant temperature circulating oil bath

1. Introduction of high temperature constant temperature circulating oil bath:

The high temperature constant temperature circulating oil bath provides heat source for various heating devices, and can be used alone. It can be used in combination with jacketed glass reactors, such as water bath, oil bath, circulating oil bath, etc., and can be selected according to needs.

Features of  the  circulation oil bath:

- Controllable temperature and flow, to provide a thermostatic environment
- Digital display for convenient and flexible setting
- Efficient and secure temperature conversion, 100℃/ 15mins
- Electrical setting, easy to operate
- Imported stainless material, to promise the bath quality
- Safe in operation, easy to move around with steering wheels
High Temperature Thermostatic Circulating Oil Bath feature a cost-effective design with no compromise on quality and performance. They are suitable for temperature control of externally connected applications. With an open reservoir design, the user have option to insert objects like samples, sensors, etc. directly into the thermostat bath. The equipment come with long-life bath vessels made out of high quality stainless steel and have circulation connections on the sides as standard configuration.

High Temperature Thermostatic Circulating Oil Bath specification

Technical Parameters

Model

GYY-

5L

GYY-

10L

GYY-

50L

GYY-

80L

GYY-100L







Function

Liquid storage volume (L)

5

10

50

80

100



No-load maximum temperature

200℃



Heating power (kW)

2.8

2.8

2.8

3

 Cycling performance

Power

220V/50HZ     380V/50HZ(50L/80L)



Pressure

1.45Mpa



Cycle way

Sealed magnetic pump cycles



Flow rate(L/min)

15-20

20-25

Temp

control performance

Temp control range (℃)

Water bath: RT~99;  Oil bath: RT~250



Temperature error

≤2.50%

Working condition

Humidity

60%



HTF viscosity

Below 500C℃·S·t

Currents(A)

10

Optional Configuration

Explosion-proof motors and electrical

The number of heating tube

1

3
