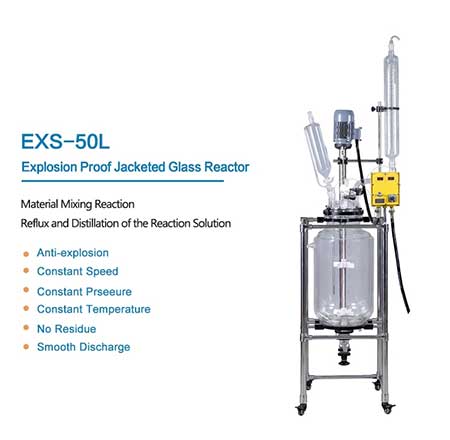

Explosion-proof glass reactors
The double layer glass reactor can be used for vacuum stirring reaction, high temperature, and low-temperature reaction, constant speed operation mixed reaction, distillation, reflux, concentration reaction, negative pressure operation and the like. The explosion-proof design ensures the safety of the operator during use and the protection of the glass part of the equipment.
Features
1. Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you the best control over your work. It also helps prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
2. Solvent-resistant PTFE on all sealing components ensures long-time durability and operation.
3. All glassware is hand-made from high borosilicate glass that is heat/cold/corrosion-resistant
4. The adjustable stirring rate provides great torque or high speed.
5. PTFE stirring rod bearing for reliable and quiet operation.
6. Optional multi-layer stirring blades for optimal reaction results.
7. Wide range of temperature operations, from -80℃ to 250℃.
8. Large condenser cooling surface for exceptional condensation performance.

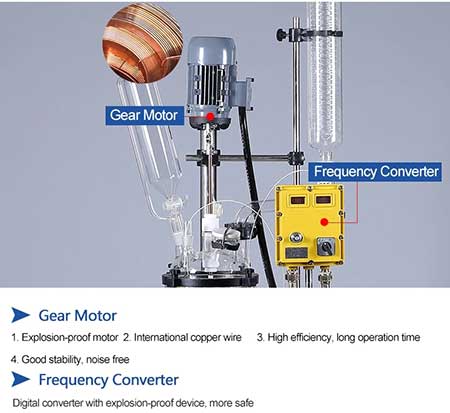

9. The explosion-proof motor is optional
10. 110V/60Hz can be customized
Detail
The following equipment is used in conjunction with a glass reactor to increase the efficiency of the glass reactor.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
